제품명

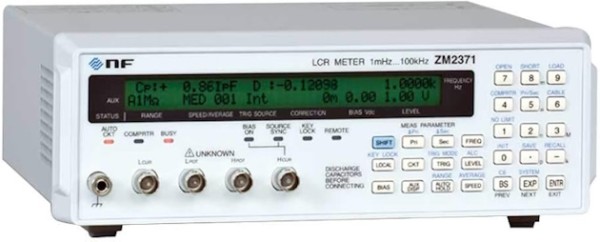

LCR Meter

제조사

모델

ZM2371

가격

문의요

렌탈

문의요

	ZM2371	ZM2372	ZM2376
Measurement parameters	Primary parameters? \|Z\|, \|Y\|, L, C, R, G Secondary parameters? Q, D, θ, X, B, Rs, Rp, G, Lp, Rdc
Measurement frequency	1 mHz to 100 kHz		1 mHz to 5.5 MHz
Basic accuracy	0.08 %
Measurement signal level	10 mVrms to 5 Vrms, 1μArms to 200 mArms
DC bias	Internal: 0 to +2.5 V External: ± 40V ( using an optional DC bias voltage adapter)		Internal: 0 to +5.0 V External: ± 40V ( using an optional DC bias voltage adapter)
Measurement time	Max. 2 ms (at 1 kHz)		Max. 2 ms (at 1 MHz)
Contact check	Unequipped	Equipped (4 terminal)	Equipped
Low capacitance check	Unequipped	Unequipped	Equipped
Comparator	9 bins	14 bins	14 bins
Multi-measurement	Unequipped	Unequipped	Equipped
Interface	USB, RS-232 *GPIB interface is not available.	USB, RS-232, GPIB	USB, RS-232, GPIB, LAN (option)
Handler interface	Unequipped	Equipped	Equipped
Software	Application software for remote control and data acquisition

Basic accuracy: 0.08 %, display resolution of 6 digits (max.)
Measurement speed: Max. 2 ms at 1 kHz
Measurement speed is selectable between 5 levels: RAP (rapid) , FAST, MED, SLOW and VSLO (very slow). When set to RAP, high-speed measurement at 2 ms (1kHz) or 10ms (120 Hz) can be performed.
Measurement frequency: 1 mHz to 100 kHz, 5-digit resolution
Measurement signal level: Max. 5 Vrms, 3-digit resolution
Measurements parameters: Lp, Ls, Cp, Cs, Rp, Rs, |Z|, |Y|, G, Q, D, theta, X, B, Rdc
Internal DC bias: 0 V to +2.50 V
Constant-voltage/constant-current drive (ALC:Auto Level Control)
DC resistance measurement
4-terminal contact check function and a handler interface for production lines (ZM2372)
ZM2372 is equipped with contact check function to prevent mis-measurement or incorrect sorting due to defective contact between the measurement tip and component. It checks contact with 4 measurement terminals, and if a contact defect occurs, it halts measurement/sorting and determines the contact defect. This function contributes to improved yield.
