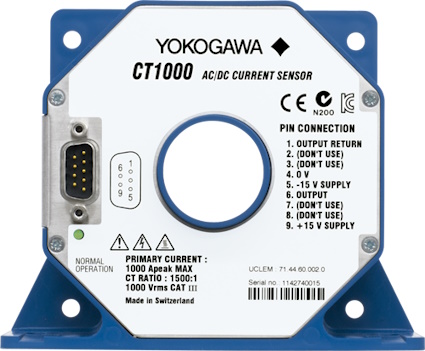

Current range : 0 to 1000 A (DC), 1000 Apeak (AC)
Wide measurement frequency range: DC to 300 kHz (-3 dB)
Highly-precise basic accuracy: ±(0.05% of rdg + 30 µA)

Connection examples* making use of built-in DC power supply (/PD2 option)

*1: Use an insulated conductor or cable for wiring on the primary side.
*2: When connected to CT2000A current sensors, use DC power supply option (/PD2) for WT1800E or PX8000.

Combination among CT current sensors, dedicated cables and Shunt Resistor Boxes

Current limitations of the /PD2 option when using CT2000A

When connecting the current sensor, CT2000A, to the DC power supply option (/PD2) terminals on a WT1800E or PX8000 Power Analyzer, make sure that the output current does not exceed the range shown below.

Connection example*
Using external DC power supply
