제품명

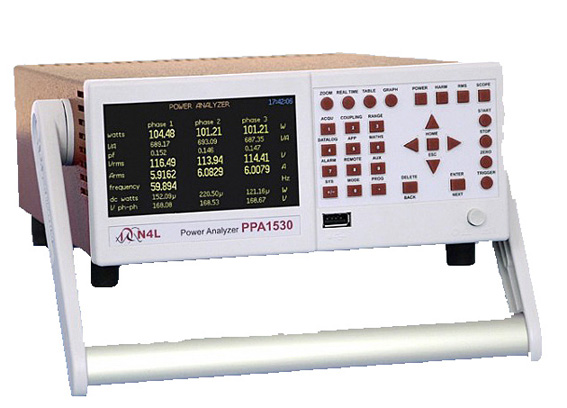

Power Analyzer
제조사
N4L, Newtons 4th
모델
PPA1530
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
◀ 0.05% 기본 정확도
◀ 주파수 범위 : DC 10mHz~ 1MHz
◀ 높은 정밀도의 내부 션트 / 뛰어난 정확도의 외부 션트
◀ 역률이 낮은 응용 프로그램에 필요한 5 millidegree 위상 정확도
◀ 20 Arms (300 Apk) 그리고 1000 Vrms (2500 Vpk) 까지 직접 입력 가능
◀ 모든 채널에서 고속 샘플링
◀ 현재 시간과 차이 없는 진정한 실시간 분석 가능
◀ 1, 2 , 3 상 가능
◀ 실시간 디지털 테이블 형식 그리고 그래픽, 오실리스코프 디스플레이
◀ N4L 션트의 고전류 어플리케이션을 위한 간단한 BNC연결
◀ RS232, USB, LAN 확장 및 보조 포트 지원 가능
| Specification | PPA1530 Three Phase Analyzer | |
|---|---|---|
Frequency Range: | Bandwidth | DC, 10mHz ~ 1MHz |
x10 DC, 10mHz ~ 100kHz | ||
Voltage Input: | Internal Ranges | Normal : 1Vpk ~ 2500Vpk (8 ranges) |
x10 100mVpk ~ 300Vpk (8 ranges) | ||
| Internal Accuracy | Normal : 0.05% Rdg + 0.1% Rng + (0.005%xkHz) + 5mV | |
x10 : 0.05% Rdg + 0.1% Rng + (0.01%xkHz) + 1mV | ||
| External Voltage BNC Input Ranges | 1mVpk ~ 3Vpk in 8 ranges [BNC Connector 3Vpk Max Input] | |
| External Voltage Input Accuracy | 0.05% Rdg + 0.1% Rng + (0.005%xkHz) + 5uV | |
Current Input: | PPA1500 20Arms Shunt, 4mm Safety Connectors | Normal : 100mApk ~ 300Apk (20Arms) (8 ranges) |
x10 : 10mApk ~ 30Apk (8 ranges) | ||
| PPA1500-HC 30Arms Shunt, 4mm Safety Connectors | Normal : 300mApk ~ 1000Apk (30Arms) (8 ranges) | |
x10 : 30mApk ~ 100Apk (8 ranges) | ||
| Internal Shunt Accuracy 20Arms | Normal : 0.05% Rdg + 0.1% Rng + (0.005% x kHz) + 500uA | |
x10 : 0.05% Rdg + 0.1% Rng + (0.01% x kHz) + 100uA | ||
| Internal Shunt Accuracy HC 30Arms | Normal : 0.05% Rdg + 0.1% Rng + (0.005% x kHz) + 1mA | |
x10 : 0.05% Rdg + 0.1% Rng + (0.01% x kHz) + 300uA | ||
| External Current BNC Input Ranges | 1mVpk ~ 3Vpk (8 ranges) | |
| External Current Input Accuracy | 0.05% Rdg + 0.1% Rng + (0.005%/kHz) + 5uV | |
Phase Accuracy: | Normal | 0.01deg + (0.01deg/kHz) |
| x10 | 0.01deg + (0.02deg/kHz) | |
Power Accuracy: | Normal | [0.1% + 0.1%/pf + (0.01%/kHz)/pf] Rdg + 0.1% VA Rng |
| x10 | [0.1% + 0.1%/pf + (0.02%/kHz)/pf] Rdg + 0.1% VA Rng | |
| 40Hz ~ 850Hz | As above with range error reduced from +0.1% V,A,VA Rng to +0.05% V,A, VA Rng | |
General: | Crest Factor | 20 (Voltage and Current) |
| Sample Rate | 1Ms/s on all channels, real time No-Gap | |
| IEC Compliant Modes | IEC62301/EN50564 Standby Power Mode | |
| Application Modes | Ballast, Inrush, Standby Power | |
| CMRR - Common Mode Rejection Ratio | 250V @ 50Hz – ≥ 1mA (150dB); 100V @ 100kHz – ≥ 3mA (130dB) | |
Measurement Parameters: | W, VA, Var, pf, V & A – rms, rectified mean, AC, DC, peak, surge, crest factor, form factor, star-delta/delta-star conversion | |
Frequency (Hz), Phase (deg), Fundamentals, Impedance | ||
Harmonics, THD, TIF, THF, TRD, TDD | ||
Integrated Values, Datalog, Sum and Neutral Values | ||
Datalog (Up to 4 user selectable measurement functions (60 with PC software): | Datalog window | No-Gap analysis, Minimum Window 10ms |
| Memory | RAM up to 16,000 records | |
| Communication Ports | RS232, LAN, USB, Extension (Aux) | |
Standard Accessories: | Leads | Power, RS232, USB |
| Connection Cables | 20A (Std Version) or 30A (HC version) 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase | |
| Connection Clips | 4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase | |
| Instruction manual | User manual, Communications manual | |
| Other documents | Calibration certificate, Quick start guide | |
Mechanical and Environmental: | Display | 480×272 dot full colour TFT, White LED backlit |
| Dimensions | 92H x 215W x 312D mm excluding feet | |
| Weight | ||
