Features

• Max. Input Voltage: 200V
• Max. Input Power: 150W
• Max. Input Current: 30A
• High-speed response
  SW(switching) operation is available in the CC or CR discharging mode. It features the maximum response of 10µs (in the CC discharging mode).
• 100 sequence memory
  Storing on panel in the memory facilitates easy sequence operation.
• External control
  Every model allows analog control according to external voltage (0 to 10V) and external resistance (0 to 10kOhm).
• GP-IB interface
  Every model has the general purpose interface bus GP-IB as the standard feature.
• Master slave parallel operation
  A maximum of five units can be connected in the parallel master slave operation mode.
• Various protective functions
  Three protective functions are available: UVP (Under Voltage Protection), OCP (Over Current Protection) and OPP (Over Power Protection). Six alarm functions are available: RCP (Reverse Connection Protection) alarm, OPP (Over Power Protection) alarm, OVP (Over Voltage Protection) alarm, OCP (Over Current Protection alarm, OHP (Over Heat Protection) alarm and UVP (Under Voltage Protection) alarm.
• Software start function
  The current rise time of the load side can be adjusted according to the rise time of the output voltage, when test the rise time of switching power supply.




  Model	Input range value in brackets for 0V mode			Constant current mode value in brackets for 0V mode				Constant resistance mode		Constant power mode		소비전력 [VA]
  	Voltage [V]	Current [A]	Power [W]	L range	H range	L	H	L	H	L	H
  				A	mArms	A	mArms	Ω	Ω	W	W

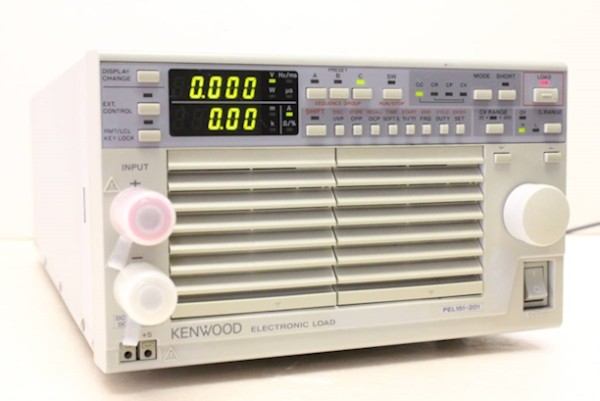

  PEL151-201	1.5-200	0-30	0-150	0-0.3	1	0-30	10	150k-5	1.5k-50m	0.03-1.5	1.5-150	110
  PEL151-201V1	1.5-200 (0-200)	0-30 (0-18)	0-150 (0-100)	0-0.3	1	0-30 (0-18)	10 (20)	150k-5	1.5k-50m	0.03-1.5	1.5-150	347
  PEL301-201	1.5-200	0-60	0-300	0-0.6	1	0-60	10	75k-25	750k-125m	0.06-3	3-300	121
  PEL301-201V1	1.5-200 (0-200)	0-60 (0-18)	0-300 (0-200)	0-0.6	1	0-60 (0-18)	10 (20)	75k-25	750k-125m	0.06-3	3-300	354
  PEL601-201	1.5-200	0-120	0-600	0-1.2	2	0-120	20	37.5k-1.25	375k-125m	0.12-6	6-600	147
  PEL601-201V1	1.5-200 (0-200)	0-120 (0-18)	0-600 (0-400)	0-1.2	2	0-120 (0-18)	20 (30)	37.5k-1.25	375k-125m	0.12-6	6-600	365
  PEL102-201	1.5-200	0-200	0-1000	0-2	3	0-200	30	25k-833m	250-8.3m	0.2-10	10-1k	169
  PEL102-201V1	1.5-200 (0-200)	0-200 (0-18)	0-1000 (0-600)	0-2	3	0-200 (0-18)	30 (30)	25k-833m	250-8.3m	0.2-10	10-1k	382
  PEL151-501	5-500	0-7.5	0-150	0-0.075	0.5	3	30	2M-66.67	20k-0.6667	0.03-1.5	1.5-150
