| Specifications |
| Rated input current | 5000A to 500A AC | 500A to 50A AC |
| Rated output current | 500mV AC f.s. (0.1mV AC/A) | 500mV AC f.s. (1mV AC/A) |
| Amplitude accuracy | ±2.0% rdg. ±1.5mV (45 to 66 Hz, minimum input 10% of range) |
| Phase accuracy | ±1° degree (45 to 66 Hz) |
| Frequency characteristics | 10 Hz to 20 kHz ±3 dB (deviation from accuracy) |
| Max. allowable input | Continuous 10000A AC (45 to 66 Hz) |
| Max. rated voltage to earth | 1000 V AC rms (insulated wire) |
| Power requirement | LR03 (AAA) x 4, continuous use 7 days, or AC adapter 9445-02/ 9445-03 |
| Max. circuit voltage | 300 V AC rms (insulated wire) |

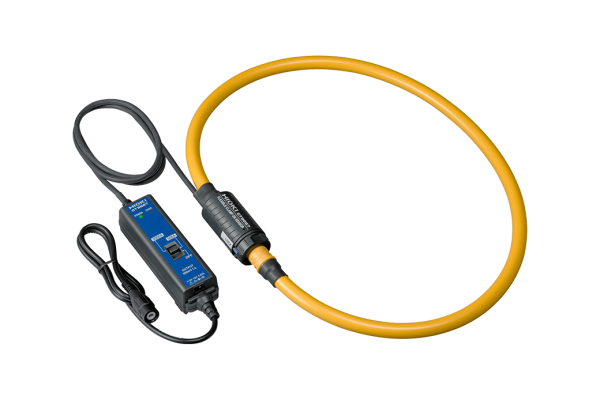

| Core jaw diameter | φ 254 mm (10 inch) |
| Dimensions and mass | Sensor: 910 mm (35.83 in) length
Control unit: 2.26 in x 3.41 in x 1.18 in (57.5 x 86.5 x 30mm), 450 g (15.9 oz)
Cord length from sensor to unit: 2m (6.56 ft), Output cord 1m (3.28 ft) |
