제품명

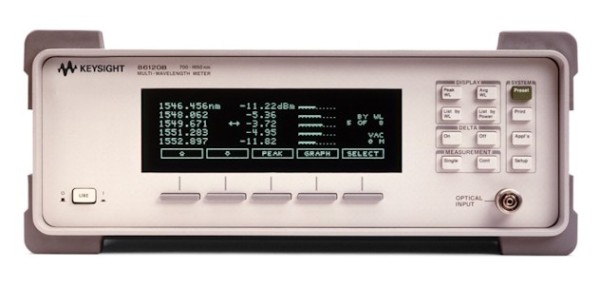

Multi-Wavelength Meter

제조사

HP/Agilent/KEYSIGHT

모델

86120C

가격

문의요(재고유)

렌탈

문의요

첨부파일

상세내용


Features:

* Wavelength scan in less than 1sec
* Wavelength accuracy: +- 2 ppm for laser lines separated by > 15GHz
* High Laser Input power: 10dBm (18dBm - Safe Input level)
* Built-in HeNe laser wavelength standard


Benefits:
* The wavelength accuracy gives you the certainty of accurate channel characterization
  in dense WDM systems, to detect channel's wavelength shift and crosstalk between
  adjacent channels.
* The high input power level enables you to test transmitter without additional
  connections and instruments (e.g. attenuator).
* The built-in HeNe guarantees an accurate absolute wavelength measurement real-time
  determined against the standard anytime and ensures accurate and reproducible
  experimental results.


Specifications

* Maximum Number of Laser Lines Input: 200
* Wavelength Range: 1270 - 1650 nm (182 to 236 THz)
* Absolute Accuracy +/-2 ppm (+/-0.003 nm at 1550 nm and at 1310 nm) for laserlines
  separated by 15 GHz
