제품명

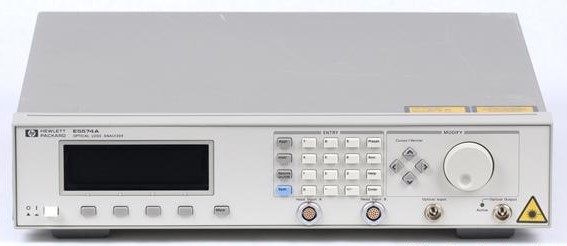

Optical Loss Analyzer
제조사
HP/Agilent
모델
E5574A
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- Wavelength Range (with external source): 1250 to 1600 nm
- Display Resolution: 0.0001 dB
- Absolute PDL/PDG Uncertainty: ±0.005 dB +0/-2.5% of measured PDL
(for PDL <0.2 dB)
- Absolute PDCR Uncertainty: ±0.01 dB +0/-5% of measured PDCR
(for PDCR ≤0.2 dB)
- Repeatability for PDL/PDG: ±0.001 dB ±2% of measured PDL
- Reapeatability for PDCR: ±0.002 dB ±4% of measured PDCR
- PDL/PDG/PDCR Range: 0 to 5 dB
-Max Insertion Loss of DUT: 20 dB
