제품명

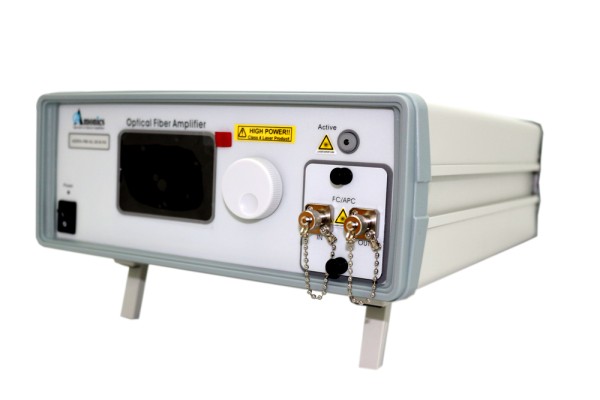

C-Band Optical Fiber Amplifier

제조사

AMONICS

모델

AEDFA-DWDM--22-B-FC

가격

문의요(재고有)

렌탈

문의요

Saturation Output Power; +22dBm

Wavelength Range; 1526 ~ 1566nm

Noise Figure (typ.); 6.5dB

Input Isolation; > 30dB, FC connector

	AEDFA-C-DWDM-23	AEDFA-C-EX-DWDM-23	Remarks
Composite Output Power	Min. 22, Typ. 23 dBm	Min. 22, Typ. 23 dBm
Composite Input Power	-10 to +10 dBm	-10 to +10 dBm	Depends on the required gain
Optical Input Wavelength	1529 to 1563 nm	1527 to 1567 nm
Gain (dB)	21, 25, 30	21, 25, 30	Input Power (dBm) +1, -3, -8
Noise Figure	Typ. 5.5 dB, Max. 6.0 dB	Typ. 5.5 dB, Max. 6.0 dB
Gain Flatness (peak to peak)	Typ. 1.0 dB, Max. 2.0 dB	Typ. 1.0 dB, Max. 2.0 dB
Input & Output Isolation	Min. 30 dB	Min. 30 dB
Polarization Dependent Gain	Typ. 0.3dB, Max. 0.5dB	Typ. 0.3dB, Max. 0.5dB
Control Mode	ACC, APC, AGC(optional)	ACC, APC, AGC(optional)
