제품명

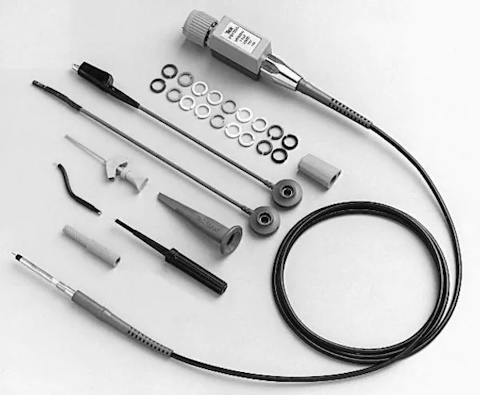

Passive Probe
제조사
Tektronix
모델
P6138A
가격
문의요
렌탈
문의요
상세내용
This unit has the following specifications:
Cable Length: 1.3 m
Bandwidth: DC to 400 MHz
Attenuation: 10x
Comp. Range: 8 to 12 pF
Input C: 8 pF
System Input Resistance: 10 Megaohm
This probe is compatible with the following systems:
TDS 500 Series
TDS 600 Series
TDS 700 Series
TDS 3000 Series
