AC / DC Measurement Capabilities

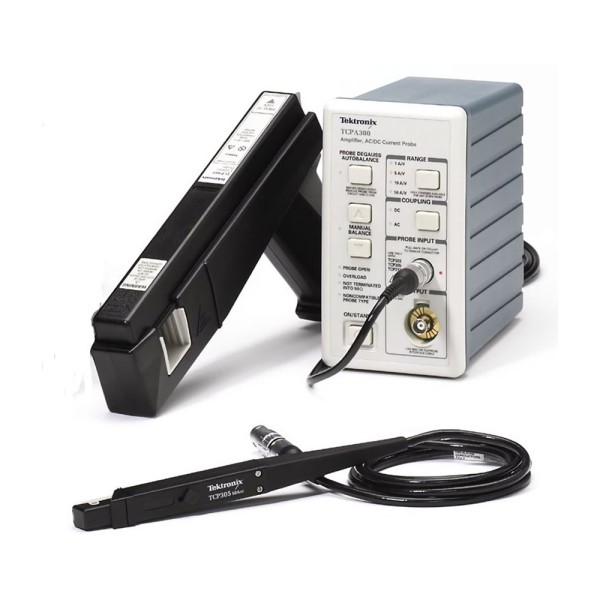

DC to 100MHz, Current Probe Amplifier (TCPA300) Uses:

DC to 100MHz, 30 A DC (TCP312A)

DC to 50MHz, 50 A DC(TCP305)

DC to 15MHz, 150 A DC (TCP303)

DC to 50MHz, Current Probe Amplifier (TCPA400) Uses:

DC to 2MHz, 750*1 A DC (TCP404XL) (500 A DC Continuous)

Automatic Scaling and Units*2 - Oscilloscope On-Screen Readout of

    Magnitude and Units Reduces Measurement Errors with No More Hand Calculations

AC / DC Input Coupling

Low Insertion Impedance Reduces Device Under Test Loading

Small Mechanical Package - Less Desktop Space, Easier Storage and Handling

Split-Core Construction Allows Easy Circuit Connection

Status Indicators Provide Visual Operating Status and Notification of Potential Error Conditions

Lower DC Drift and Noise Allows Improved Low Level Current Measurements

Certified for use in U.S., Canada, and Europe. Complies with applicable IEC standards.
