제품명

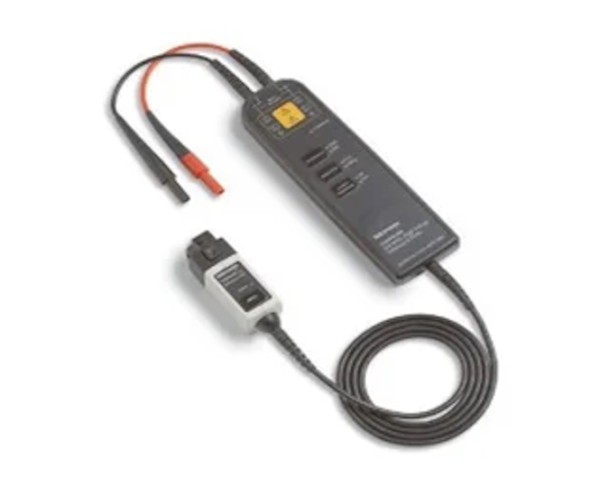

High-voltage Differential Probes
제조사
Tektronix
모델
THDP0200
가격
문의요(재고有)
렌탈
문의요
첨부파일
상세내용
Specifications
All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
Model overview
| TMDP0200 | THDP0200 | THDP0100 | |
|---|---|---|---|
| Attenuation | 25X / 250X | 50X / 500X | 100X / 1000X |
| Differential Voltage | 250X: ±750 V 25X: ±75 V | 500X: ±1500 V 50X: ±150 V | 1000X: ±6000 V 100X: ±600 V |
| Common Mode Voltage | ±750 V | ±1500 V | ±6000 V |
| Maximum Input Voltage-to-Earth | 550 V CAT I 300 V CAT III | 1000 V CAT II 600 V CAT III | 2300 V CAT I 1000 V CAT III |
| Bandwidth | 200 MHz | 200 MHz | 100 MHz |
| Rise Time | <1.8 ns | <1.8 ns | <3.5 ns |
| Slew Rate | <275 V/ns at 1/250 gain | <650 V/ns at 1/500 gain | <2500 V/ns at 1/1000 gain |
| Input Impedance at the Probe Tip | 5 MΩ || <2 pF | 10 MΩ || <2 pF | 40 MΩ || <2.5 pF |
| Typical CMRR | DC: > -80 dB 100 kHz: > -60 dB 3.2 MHz: > -30 dB 100 MHz: > -26 dB | DC: > -80 dB 100 kHz: > -60 dB 3.2 MHz: > -30 dB 100 MHz: > -26 dB | DC: > -80 dB 100 kHz: > -60 dB 3.2 MHz: > -30 dB 100 MHz: > -26 dB |
| Cable Length | 1.5 m | 1.5 m | 1.5 m |
| P5200A | P5202A | P5205A | P5210A | |
|---|---|---|---|---|
| Attenuation | 50X / 500X | 20X / 200X | 50X / 500X | 100X / 1000X |
| Differential Voltage | 500X: ±1300 V 50X: ±130 V | 200X: ±640 V 20X: ±64 V | 500X: ±1300 V 50X: ±130 V | 1000X: ±5600 V 100X: ±560 V |
| Common Mode Voltage | ±1300 V | ±640 V | ±1300 V | ±5600 V |
| Maximum Input Voltage-to-Earth | 1000 V CAT II | 450 V CAT l 300 V CAT ll | 1000 V CAT II | 2300 V CAT l 1000 V CAT III |
| Bandwidth | 50 MHz | 100 MHz | 100 MHz | 50 MHz |
| Differential Input Impedance | 10 MΩ || 2 pF | 5 MΩ || 2 pF | 10 MΩ || 2 pF | 40 MΩ || 2.5 pF |
| Input Impedance between each Input and Ground | 5 MΩ || 4 pF | 2.5 MΩ || 4 pF | 5 MΩ || 4 pF | 20 MΩ || 5 pF |
| Typical CMRR | DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >30 dB 50 MHz: >26 dB | DC: >80 dB 100 kHz: >60 dB 3.2 MHz: >40 dB 50 MHz: >30 dB | ||
| Cable length | 1.8 m | |||
