제품명

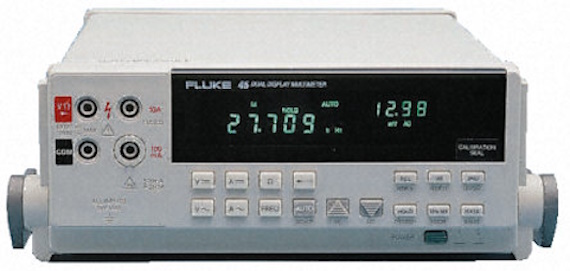

Digital Multi Meter

제조사

FLUKE

모델

가격

문의요(재고유)

렌탈

문의요

Multifunction Vacuum Fluorescent Dual Display

True-RMS Voltage and Current Measurement, Including AC + DC

0.05% DC Current Accuracy for 4-20 mA Current Loop Service

Standard RS-232 Interface

Optional IEEE-488.2 Interface

Frequency Measurement to 1 MHz

dB Measurements

MIN/MAX Mode

RELATIVE Mode

COMPARE (Hi/Lo/Pass) for Quick In-Tolerance Tests

Closed Case Calibration

VDC	Range: 0V-1000V Resolution: 1 µV-0.01V Best Accuracy: ± 0.025% + 2^*
VAC (True-rms, AC Coupled) Freq. 20 Hz-100 khz	Range: 0V-750V Resolution: 1 µV-0.01V Best Accuracy: ± 0.2% + 10^*
dB Readout (600 W Ref.) (Ref. Z 2W-8000W)	Range: -34 ± 60 Resolution: 0.01 dB-0.1 dB Best Accuracy: ± 0.08 dBm ^*
ADC	Range: 0 mA-10A Resolution: 0.1 µA-10 mA Best Accuracy: ± 0.05% + 2 ^*
AAC (True-rms, AC Coupled) Freq. 20 Hz-20 khz	Range: 15 µA-10A Resolution: 0.1 µA-10 mA Best Accuracy: ± 0.5% + 10 ^*
Resistance	Range: 0Ω-100 MΩ Resolution: 0.001Ω-1mΩ Best Accuracy: ± 0.05% + 2 ^*
Frequency	Range: 5 Hz - 1 MHz Resolution: .01 Hz-1 kHz Best Accuracy: ± 0.05% + 1 ^*
Size	216 mm W x 93 mm H x 286 mm D (8.5" W x 3.67" H x 11.27" D)
Weight	Net 2.4 kg (5.2 lb); with battery 3.2 kg (7 lb)
One Year Warranty	One year calibration interval
