제품명

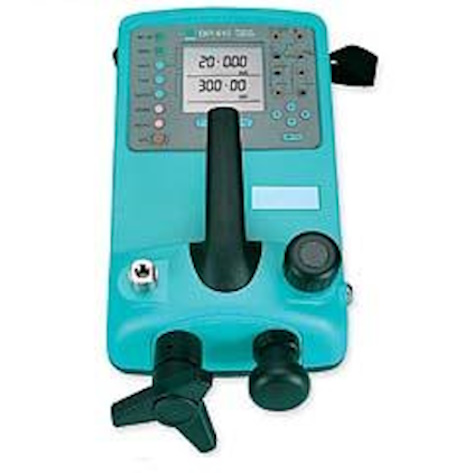

Digital Pressure Indicator/Calibrator
제조사
DRUCK
모델
DPI610 (16MPa)
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- 52 Ranges from 2.5 mbar to 700 bar
- Accuracy from 0.025% F.S.
- Integral combined pressure/vacuum pump
- 4 to 20 mA loop test facility
- RS 232 interface and fully documenting version
- Up to 11 sensors per instrument
DPI 610/615PC Pneumatic Calibrator
Hand-Pump | -850 mbar to 20 bar capability |
|---|---|
Volume Adjuster | Fine pressure adjustment |
Release Valve | Vent and controlled release |
Pressure Port | G 1/8 female |
Media | Most common gases |
DPI 610/615LP Low Pressure Calibrator
Volume Adjuster | Dual piston for coarse/fine pressure setting |
|---|---|
Release Valve | Vent and controlled release |
Pressure Ports | G 1/8 female |
Media | No corrosive gases |
DPI 610/615HC Hydraulic Calibrator
Priming Pump | M5 female feed port |
|---|---|
Shut-off Valve | Open for system priming |
Screw Press | 0 to 400 bar capability |
Pressure Port | G 1/8 female |
Media | Demineralized water and most hydraulic oils |
DPI 610/615I Indicator
Release Valve | Vent and controlled release |
|---|---|
Pressure Port | G 1/8 female |
Media | Most common fluids compatible with stainless steel |
Pressure Ranges
The DPI 610/615 PC, HC, LP and I include an integral sensor, the range of which should be specified from the list below. Up to 10 remote sensors (option B1) may also be ordered per calibrator.
