Range; 3,000KPa
Display unit; kPa, kgf/cm2, mmH2O, mmHg, %


Features:

• High accuracy pressure measurement : ±0.02% of reading
• Measures both gases and liquids
  Gases or liquids that are not inflammable, explosive, toxic or corrosive can be measured by the same instrument.
• Maximum input up to 500 kPa
  (for 10 kPa and 130 kPa range models) - greatly improved sensor protection against excessive accidental input pressure.
• Three types of power supply:
  100 to 120 V AC/200 to 240V AC
  12V DC
  External battery pack (optional accessory)
  Ni-Cd battery provides up to approx. six hours continuous use; battery charger is supplied.
• GPIB or RS-232-C Interface (selectable)
  Either the GPIB or RS-232-C interface can be selected
• The pressure display unit can display kPa, kgf/cm? mmH 2 O, mmHg, psi, inH 2 O, and inHg (switchable)

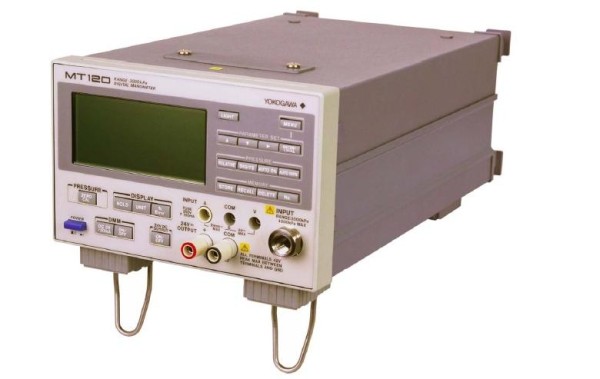

MT120 Only:

• DMM function (built-in DC measurement of 1 to 5V and 4 to 20mA DC signals, floating input)
  Measurement accuracy : ±(0.01% of reading + 2 digits) at 23±3°C
• 24 V DC power supply to transmitter (floating output)
• % value and % error display functions
  These increase the efficiency of calibration and inspection of pressure/differential pressure transmitters.
• Measured data memory
  Up to 1024 field calibration data items can be stored in internal memory
