제품명

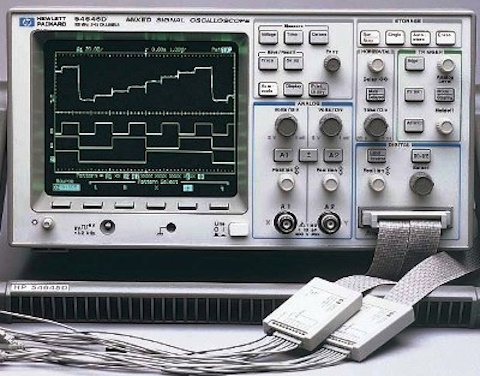

Mixed Signal Oscilloscope
제조사
HP/Agilent/KEYSIGHT
모델
54645D
가격
문의요
렌탈
문의
첨부파일
상세내용
▷ Oscilloscope Features
100 MHz repetitive bw
20 MHz single-shot bw
2 input channels
200 MSa/s
1 Meg record length
1 mV to 5 V/div, 5 ns to 50s/div
40 ps timebase resolution
8-bit vertical resolution
3 M points/s update rate
Glitch triggering
Save/recall 10 setups
12 automatic measurements
HP-IB, RS-232, hard copy, FFT, extended waveform math & more with add-on modules.
▷ Logic Analyzer Features
16 timing channels (two 8-channel pods)
400 MSa/s one pod; 200 MSa/s two pods
2 M points/ch one pod; 1 M points/ch two pods
TTL, CMOS, ECL thresholds
5 ns peak detect
Advanced logic-triggering modes
