제품명
Digital O'scope
제조사
LeCroy
모델
Waverunner 6200
가격
문의요
렌탈
문의요
첨부파일
상세내용
Quick Specs
- 2 GHz Bandwidth
- up to 10 GS/s
- 4 M~8Mpts/Ch standard memory
- Uncommon capabilities - right out of the box
- Efficient User Interface

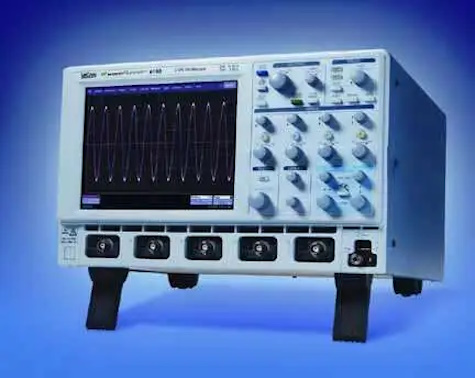

WaveRunner 6000A Series Oscilloscope
The WaveRunner? 6000A Series is the best oscilloscope for everyday signal testing. Its remarkable functionality includes the following capabilities:
- acquisition technology that delivers measurements you can trust
- an efficient interface that feels just right to the busy engineer
- uncommon capabilities-right out of the box
- a platform for building on even more functionality
A Rich Feature Set is Standard
The WaveRunner 6000A Series is an everyday bench scope with true "lab instrument" capabilities. This series offers:
- Bandwidths from 350 MHz to 2 GHz
- Sample rates of 2.5 to 10 GS/s
- Standard memory of 4 Mpts/Ch
- All channels expandable to 12 Mpts
- Up to 24 Mpts when interleaved
Most importantly, these features are delivered at a price far below other oscilloscopes in this class.
Outstanding Signal Fidelity
The WaveRunner 6000A Series is powered by the same SiGe chipset that is used in LeCroy's higher bandwidth WaveMaster oscilloscopes.
- High sample rate captures high frequency transients and sharp edges
- Very low residual jitter (2 ps typical)
- Includes ultra-stable clock (±5 ppm)
This outstanding performance gives you timing resolution that rivals oscilloscopes that cost twice as much.
Windows? XP Operating System
The open Windows XP operating system allows you to install Windows application software to analyze waveform data directly in the oscilloscope, eliminating the need for processing in another PC.
5 GS/s on Each Channel – See Details Others Miss
The WaveRunner 6000A is a true 4 channel instrument-you can sample at a full 5 GS/s on each channel. Other oscilloscopes can only use a single channel at 5 GS/s or 1/4 that rate when using all four channels. WaveRunner 6000A offers more than Nyquist sample rate on each channel.
SMARTTrigger™ Makes the Most of Your Long Memory
The WaveRunner 6000A SMART Trigger provides the flexibility to quickly trigger and locate the specific signal characteristic or pattern you want. Trigger on abnormal signals at the touch of a button.
- Exclusion/inclusion feature triggers on signals outside, or within, a specific range of pulse widths.
- Selecting multiple threshold levels and pulse widths quickly catches the waveform for viewing and measuring.
- Memory retains thousands of acquired events for viewing at your leisure.
- Replay signal history, scan, and search from sweep to sweep.
Oscilloscope Specifications| WRunner 6030A | WaveRunner 6050A | WaveRunner 6051A | WaveRunner 6100A | WaveRunner 6200A | |
| Bandwidth | 350 MHz | 500 MHz | 500 MHz | 1 GHz | 2 GHz |
| Risetime (typical) | 1 ns | 750 ps | 750 ps | 400 ps | 225 ps |
| # of Channels | 4 | 4 | 2 | 4 | 4 |
| Single Shot Sample Rate | 5 GS/s | 5 GS/s | 5 GS/s | 5 GS/s | 5 GS/s |
| Repetitive Sampling (RIS) Rate | 200 GS/s | 200 GS/s | 200 GS/s | 200 GS/s | 200 GS/s |
| Vertical Resolution | 8 bits; up to 11 with enhanced resolution (ERES) | 8 bits; up to 11 with enhanced resolution (ERES) | 8 bits; up to 11 with enhanced resolution (ERES) | 8 bits; up to 11 with enhanced resolution (ERES) | 8 bits; up to 11 with enhanced resolution (ERES) |
| Bandwidth Limiters | 20 MHz; 200 MHz | 20 MHz; 200 MHz | 20 MHz; 200 MHz | 20 MHz; 200 MHz | 20 MHz; 200 MHz |
| Maximum Input Voltage | 50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : <= 10 kHz + DC) | 50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC) | 50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : <= 10 kHz + DC) | 50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC) | 50Ω : 5 Vrms, 1MΩ : 250 V max (Peak AC : ≤ 10 kHz + DC) |
| Input Impedance | 1MΩ || <20pF (10MΩ || 9.5 pF using PP007-WR probe) | 1MΩ || <20pF (10MΩ || 9.5 pF using PP007-WR probe) | 1MΩ || <20pF (10MΩ || 9.5 pF using PP007-WR probe) | 1MΩ || <20pF (10MΩ || 9.5 pF using PP007-WR probe) | 1MΩ || <20pF (10MΩ || 9.5 pF using PP007-WR probe) |
| Input Coupling | 50Ω : DC 1MΩ : AC,DC,GND | 50Ω : DC 1MΩ : AC,DC,GND | 50Ω : DC 1MΩ : AC,DC,GND | 50Ω : DC 1MΩ : AC,DC,GND | 50Ω : DC 1MΩ : AC,DC,GND |
