제품명

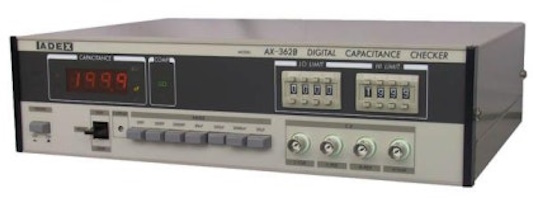

Digital Capacitance Checker
제조사
ADEX
모델
AX-362A
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
| ■SPECIFICATIONS■ |
| Measuring range and Accuracy (D<0.5 23℃±5℃) |
| Range | Measuring Range | Accuracy | Measuring voltage | |||||
| SLOW | FAST | |||||||
| 20pF | 0～19.99pF | within ±0.2% of rdg ±3digt | within ±0.3% of rdg ±3digt | 1V(rms) | ||||
| 200pF | 0～199.9pF | within ±0.2% of rdg ±2digt | within ±0.3% of rdg ±2digt | |||||
| 2000pF | 0～1999pF | |||||||
| 20nF | 0～19990pF | |||||||
| 200nF | 0～0.1999μF | |||||||
| 2000nF | 0～1.999μF | |||||||
| 20μF | 0～19.99μF | 1V～0.6V | ||||||
| Maximum terminals | 5-terminal configuration with guard terminal |
| Measuring frequency | within 1kHz ±0.1%, SINE wave |
| Temperature characteristic | within ±100ppm/℃ |
| Stray capacity correcting range | about 18pF |
| Measuring time | remote start → 2msec or 3msec for running → 3.125 times/sec. or 15.625 times/sec |
| Comparator setting range | 1999 both for HI and LO (digital switch) |
| Ambient condition for use | [Temp.] +0℃～+50℃ [Humidity] below 85% |
| Power supply | AC100V/117V/220V/240V changeable, 50/60Hz, about 20VA |
| Outer dimension | 333(W)×85(H)×245(D)mm (excluding cable-spool and legs.) |
| Weight | about 2.6kg |
