Model

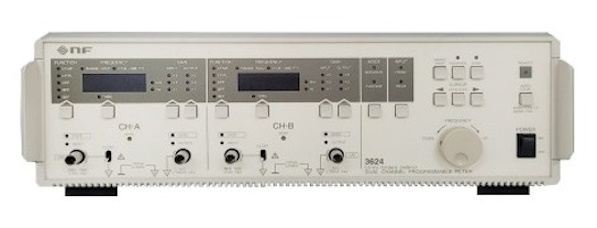

3624

3625

3627

3628

Filter mode

LP-MF, LP-PL, HPF, BPF, BEF, THRU
(MF: maximum flat, PL: phase linear)

Operational modes

SEPARATE (separate CH-A and CH-B), CASCADE (serially connected CH-A and CH-B)

Pass band gain

X1, X2, X5 selectable at both input and output

Input type

Single-ended or floating, selectable

Frequency response in THRU mode *

DC to 1MHz (+5dB, -3dB) typ.

DC to 2MHz (+5dB, -3dB) typ.

Input impedance

1MΩ ± 2%

Maximum attenuation

100dB or greater (to 100kHz), 80dB or greater (to 1MHz)

90dB or greater (to 100kHz),
70dB or greater (to 2MHz)

GPIB

Standard

Power requirements

AC100, 120, 220 or 240V± 10% (max. 250V), switchable

Dimensions (mm)

434(W) X 132.5(H) X 400(D)

Weight

Approx. 10.0kg

Approx. 10.5kg

Approx. 10.0kg

Approx. 10.5kg
