제품명

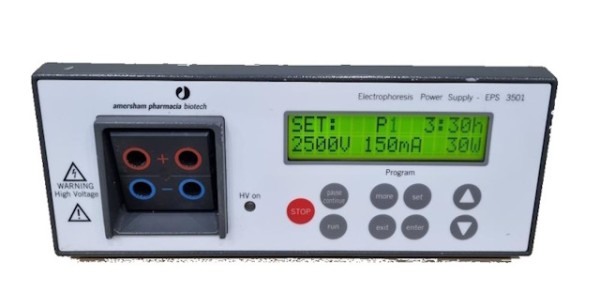

High Voltage DC Power Supply
제조사
Pharmacia Biotech
모델
EPS3500XL
가격
문의요(재고유)
렌탈
문의요
상세내용
EPS Power Supplies cover the wide range of electrophoresis and blotting applications. Designed for performance, EPS Power Supplies can be relied on for security and reproducibility.
- 3500 V, 400 mA, 200 W maximum.
- Constant voltage, constant current, constant power, and linear voltage ramp modes.
- Linear voltage ramp mode brings proteins to focused equilibrium in IPG strips quickly without danger of overheating.
- Volt-hour and milliampere-hour modes compensate for variations in gel thickness, sample ionic strength, and temperature.
- Stores and recalls up to nine protocols, each with nine phases and phase-end alarms.
- Program automatic shut-off or phase end based on time, volt-hour/milliampere-hour.
- Current rating of up to 400 mA to handle both electrophoresis and basic blotting applications.
- Current resolution of 1 µA for Immobiline DryStrip and other IPG separations.
Power | 1-200 W |
| Programming Range | Voltage: 35-3 500 V DC Current: 1-400 mA Power: 1-200 W Time: 00:01-500 h Volthour: 1-500 000 Vh Amperehour: 1-25 000 mAh |
| Output Resolution | Voltage: 1 V Current: 1 μA, 0-399 μA 10 μA, 0.4-3.99 mA 100 μA, 4.0-19.9 mA 1 mA, 20-400 mA Power: 1W |
| Programming Resolution | Voltage: 5 V Current: 1 mA Power: 1 W Time: 1 min, 00:01-99:59, 1h, 100-500 h Volthour: 1 Vh, 1-9999 Vh, 100 Vh, 10.0-99.9 kVh 1 kVh, 100-500 kVh Amperehour: 1 mAh, 1-999 mAh 10 mAh, 1.00-9.99 Ah 100 mAh, 10.0-25.0 Ah |
| Accuracy | Voltage: 1%, ± 5 V Current: 1%, ± 1 mA Power: 2%, ± 1 W Timer: 0.1% ± 1 min, 00:01-99:59 h 0.1%, ± 10 min, 100-500 h |
