Overview

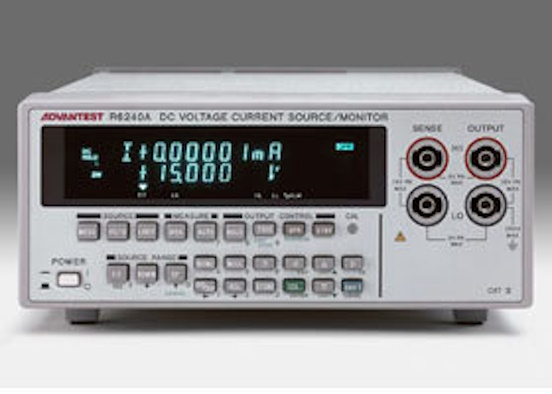

R6240A is a DC voltage and current source/monitor with generating of 4 1/2 digits, and the high accuracy of ±0.025 of basic accuracy at measurement of 5 1/2 digits.
Various kinds, such as fixed/linear/random, in addition to a sweep function, the pulse measurement function of the 500us of the minimum pulse width can use broadly as the power supply for evaluation in research and development of a semiconductor or other electronic products, and a power supply for characteristic examination systems of a production line.
Pulse generating and the pulse load function of a maximum of 4A are effective in evaluation of the device formed into a miniaturization / large current. A HI/LO individual limiter setting function is effective in evaluation of a battery and IC for power supplies.
Moreover, the newly adopted suspension function realized the long life of an output ON/OFF relay, and the high throughput by the number-of-times curtailment of a change.

Feature

4 quadrant precision source/measurement unit with basic accuracy of ±0.025 % up to ±15 V / ±1 (4) A

• Measuring accuracy of 5 1/2 digits (±319999), resolution of 10 µV. and 10 nA
• Source/sink of ±4 A for a maximum period of 20ms
• Linear/fixed/random sweep functions for characteristic measurement
• Individual settings of HI and LO limiters
• Suspend function that enables selection of an output OFF state
• Resistance measurement under constant voltage source or constant current source
• Synchronous measurement of multiple units
