제품명

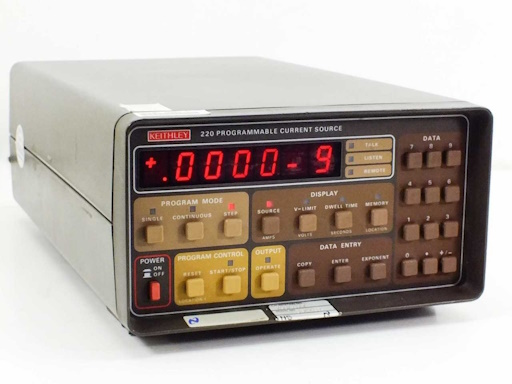

Programmable Current Source
제조사
KEITHLEY
모델
220
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- IEEE-488 bus standard
- 100 location program memory
- Programmable dwell time - 3 ms to 999.9 s
| Range | Maximum Output | Step Size |
| 100 mA | ±101.00 mA | 50 µA |
| 10 mA | ±19.995 mA | 5 µA |
| 1 mA | ±1.9995 mA | 500 nA |
| 100 µA | ±199.95 µA | 50 nA |
| 10 µA | ±19.995 µA | 5 nA |
| 1 µA | ±1.9995 µA | 500 pA |
| 100 nA | ±199.95 nA | 50 pA |
| 10 nA | ±19.995 nA | 5 pA |
| 1 nA | ±1.9995 nA | 500 fA |
- Display - 0.5 in LED digits, 4 ½-digit signed mantissa, 1-digit signed exponent.
- Maximum Allowable Common Mode Voltage (Output or Output Common to Chassis) - 250 V rms, DC to 60 Hz.
- Output Resistance - > 1014 ohms (on 1 nA range).
- Output Capacitance - < 20 pF.
- Voltage Limit - Bipolar, 1 to 105 volts in 1 V programmable steps.
- Output Load - must be non-inductive
- External Trigger - TTL-compatible EXTERNAL TRIGGER INPUT and OUTPUT.
- Output Connections - Teflon insulated 2-lug triax connector (Specialty Connector #30JR121-1) for output; five-way binding posts for GUARD, OUTPUT COMMON, and CHASSIS; BNC (chassis isolated) connectors for EXTERNAL TRIGGER INPUT and OUTPUT, Amphenol or Cinch Series 87 IEEE and printed circuit digital I/O port. All connections on rear panel.
