Features

0.01 µm Resolution
12 µm Diameter Beam Spot
50 kHz Sampling Rate
Advanced Optical and Triangulation Measurement System
Superior Operating Distance

Specifications

General
Ambient temperature: 0 to +40°C
Averaging measurements: 1 to 131072 (18 selectable settings)

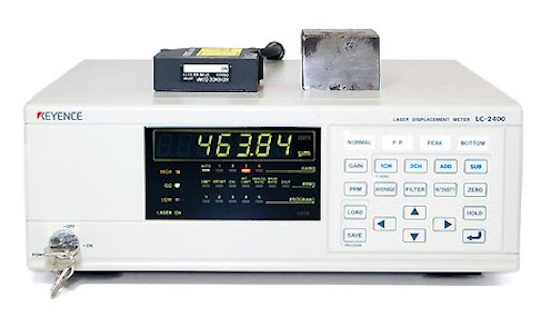

Controller: LC-2400W
Gain adjustment: AUTO/MANUAL (4 settings)
Light source: Red semiconductor laser
Linearity: ±0.05% of F.S.
Measurement stability(20 ±5°C): ±0.03% of F.S.
Measuring range: ±3 mm
Minimum spot diameter: 35 x 20 µm
OFFSET range: ±2.9998 µm
Operating distance: 30 mm
Power consumption: 70 VA max.
Power supply: 100 to 240 VAC ±10%, 50/60 Hz
Resolution: 0.2 µm
Response frequency: 20 kHz (-3dB, Averaging measurements: 1)
Response time: 100 µs
Sampling frequency: 50 kHz
Wavelength: 670 nm
Analog Output
Displacement data output: ±10 V, Output impedance: 0 ?, 6 settings
Intensity data output: 0 to 5 V, Output impedance: 0 ?
Control I/O
Control input: HOLD timing, AUTO-ZERO ON/OFF, Program selection, LASER REMOTE
Control output: Upper/lower limit, Intensity alarm, AREA OVER alarm; NPN: 100 mA max. (30V)
