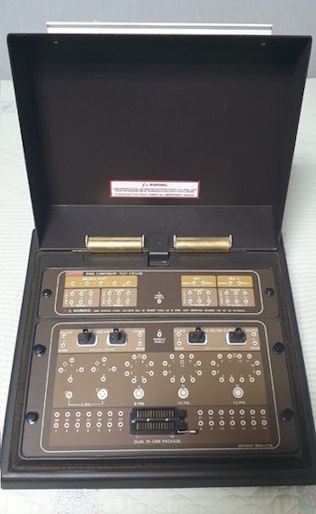

The Model 8006 Component Test Fixture
was designed specifically for making sensitive measurements
on standard package devices with minimal
setup time. Individual components may be
connected to one of eight device sockets, including
axial, 4-, 8-, 10-, and 12-lead T0, and 28-pin
DIPs. Instrumentation can be easily integrated
through the 3-lug triax, BNC, or binding post connectors
on the rear panel.
Signals from the test instruments are accessible at
the test fixture’s front panel. Mini jumper cables
are provided to connect the signal to the appropriate
device socket, which is also located on the
front panel. This unique patch-board design allows
for maximum versatility and the fastest possible
setup times.
The 8006 Test Fixture maintains accuracy throughout
the test circuit with greater than 100TΩ
(1014Ω) path isolation, 4-wire connections, guarded
jumpers, gold contacts and interconnects, and
less than 100fA offset current. A hinged lid covers
the component panel to provide a light-tight and
shielded measurement.
