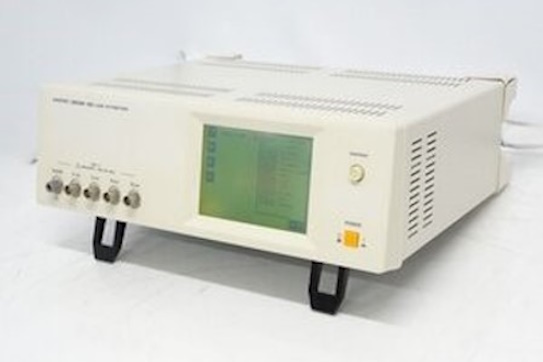

5MHz Z-Hitester
* Measurement Parameter:Z,Y,Phase angle,Cs,Cp,D,Ls,Lp,Q,Rs,G,Rp,X,B,
* Frequency respose:42.0Hz to 5.000MHz,
* Signal Level:10mV to 5Vrms/10mVrms step(42.0Hz to 1.000MHz),10mV to 1Vrms/10mVrms step(1.001MHz to 5.000MHz,
* Signal Level Accuracy:+-10%+-10mV(42.0Hz to 4.000MHz),
* +-20%+-10mV(4.001MHz to 5.000MHz),
* Average,Trigger,Zero correction,Conparator,
* Power Source:100/120/220/240V,
* Dimension:124-352-323mm, Weight:6.5kg,
* Frequency respose:42.0Hz to 5.000MHz,
* Signal Level:10mV to 5Vrms/10mVrms step(42.0Hz to 1.000MHz),10mV to 1Vrms/10mVrms step(1.001MHz to 5.000MHz,
* Signal Level Accuracy:+-10%+-10mV(42.0Hz to 4.000MHz),
* +-20%+-10mV(4.001MHz to 5.000MHz),
* Average,Trigger,Zero correction,Conparator,
* Power Source:100/120/220/240V,
* Dimension:124-352-323mm, Weight:6.5kg,
