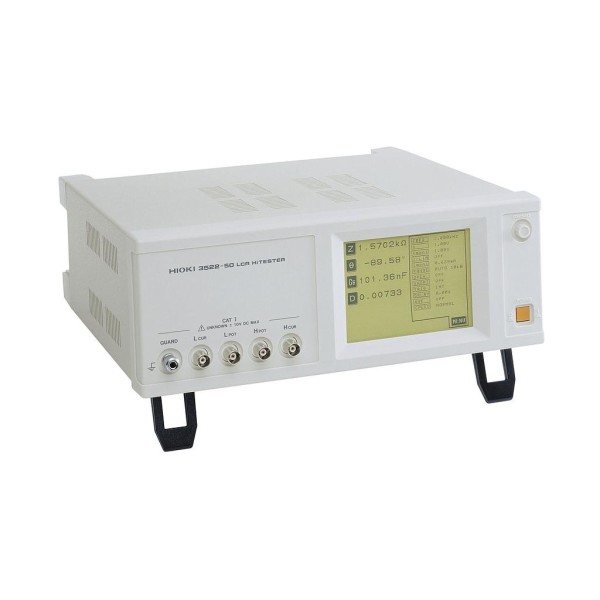

| Measurement parameters | |Z|,|Y|, θ, Rp, Rs(ESR), G, X, B, Cp, Cs, Lp, Ls, D(tan δ), Q | | Measurement ranges | 100 mΩ to 100 MΩ, 10 ranges (All parameters defined by |Z|) | | Extent of Measurement Impedance | |Z|, R, X: 10.00 mΩ to 200.00 MΩ (depending on condition)
θ: -180.00° to +180.00°, C: 0.3200 pF to 370.00 mF, L: 16.000 nH to 750.00 kH, D: 0.00001 to 9.99999, Q: 0.01 to 999.99, |Y|, G, B: 5.0000 nS to 99.999 S (Note: All measurement ranges except for |Z| are for reference only) | | Basic accuracy | |Z|: ±0.08% rdg., θ: ±0.05° | | Source frequency | 42Hz to 5MHz (0.1Hz to 1kHz steps) | | Measurement signal level | 10mV to 5V rms (up to 1MHz), 50mV to 1V rms (1MHz to 5MHz), (1mV rms steps) 10μA to 100mA rms (up to 1MHz), 50μA to 20mA rms (1MHz to 5MHz), (10μA rms steps) | | Output resistance | 50Ω | | Display | LCD with backlight display, 99999 (3, 4, or 5 digits unit setting possible) | | Measurement times | FAST: 5ms, NORMAL: 21ms,
SLOW 1: 72ms, SLOW 2: 140 ms (typical values for displaying |Z|) | | DC bias | Superimposed DC voltage, DC current to source signal (used with the optional DC bias unit and constant voltage or current source equipment) | | Function | Comparator, External input/Output (EXT. I/O), GP-IB or RS-232C interface (option)
(Note: RS-232C interface required if used with the Printer 9442.) | | Power consumption | Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 50VA max. | | Dimensions, mass | 352mm (13.86in) W × 124mm (4.88in) H × 323mm (12.72in) D, 6.5kg (229.3oz) | | Supplied accessories | Power cord × 1, Spare fuse × 1 |
|
