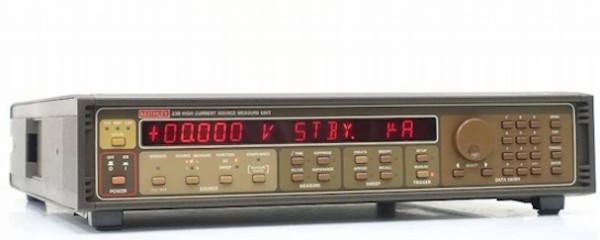

Keithley 236 Description:

The 236 Source-Measure Unit is a fully programmable instrument, capable of sourcing and measuring voltage or current simultaneously.

The 236 is really four instruments in one: voltage source, current source, voltage measure, and current measure. Creating custom sweeps of voltage or current is facilitated by the use of three waveform operations: CREATE, APPEND, and MODIFY.

These allow the user to select waveform parameters, combine multiple waveforms, and select and change any points in a waveform previously created or appended.

Keithley 236 Applications:

MOSFET measurements.
GaAs measurements.
Bipolar measurements.
Diode characterization.
Oxide characteristics.
Electromigration testing.
Research and electronic manufacturing applications.

Features:
Source voltage: 100 µV to 110 V
Source current: 100 fA to 100 mA
Measure voltage: 10 µV to 110 V
Measure current: 10 fA to 100 mA
Load capacitance: stable into 20,000 pF typical
Connectors: outputs 3-lug triaxial; trigger Input/Output: BNC(f)
IEEE-488 interface
105-125/210-250 Vac; 50-400 Hz operation
Weight: 19.75 lb; Size: 89 mm (3.5 in)H x 435 mm (17.1 in)W x 448 mm (17.63 in)D
