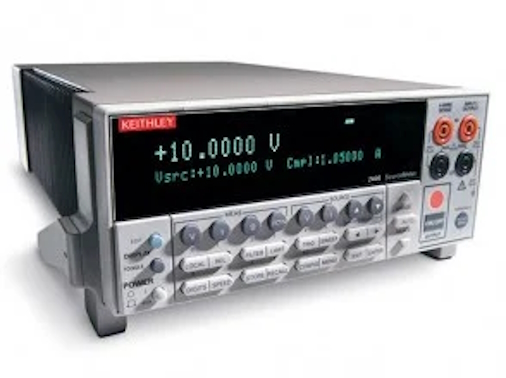

The Model 2400 SourceMeter solution is a 100W instrument that allows sourcing and measuring voltage from

±1µV to ±100V DC and current from ±100pA to ±3A.

New class of instruments designed for high speed DC testing

Family of products offers wide dynamic range: 10pA to 10A, 1µV to 1100V, 20W to 1000W

4-quadrant operation

0.012% basic accuracy with 5 1/2-digit resolution

6-wire O measurement with programmable I source and V clamp

1700 readings/second at 4 1/2 digits via GPIB

Built-in comparator for fast pass/fail testing

Optional contact check function

Digital I/O for fast binning and connection to component handlers

GPIB, RS-232, and Trigger Link interfaces

TestPoint™ and LabVIEW™ drivers
