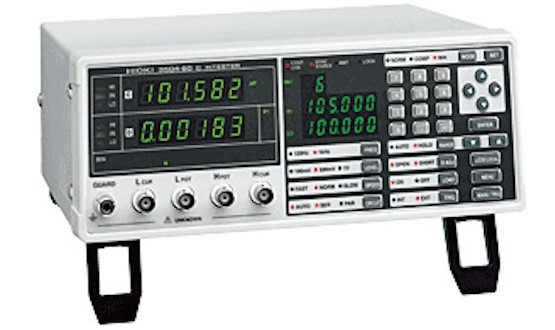

Key Features

• High speed measurement of 2ms

• Supports C measurements with voltage dependency characteristics through the use of constant voltage testing (CV)

• Model 3504-60 can detect contact failure on all 4 terminals for increased reliability

• BIN function on the 3504-60/-50 is ideal for sorting machines

• Model 3504-40 offers high speed and affordability, perfect for integrating into taping machines

• In all models, contact error is constantly monitored during measurement, contributing to increased yield

Basic specifications

Measurement parameters

Cs, Cp (capacitance),

D (loss coefficient tan δ)Measurement ranges

C: 0.9400 pF to 20.0000 mF,

D: 0.00001 to 1.99000Basic accuracy(typical value) C: ±0.09 % rdg. ±10 dgt., D: ±0.0016
Measurement accuracy = Basic accuracy × B × C × D × E, B to E is coefficientSource frequency120Hz, 1kHzMeasurement signal level500mV, 1V rms
Measurement range CV 100mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 500mV: up to 170μF range (Source frequency 1kHz), up to 1.45mF range (Source frequency 120Hz)
Measurement range CV 1V: up to 70μF range (Source frequency 1kHz), up to 700μF range (Source frequency 120Hz)Output resistance5Ω (In open terminal voltage mode outside of the CV measurement range)DisplayLED (six digits, full scale count depends on measurement range)
