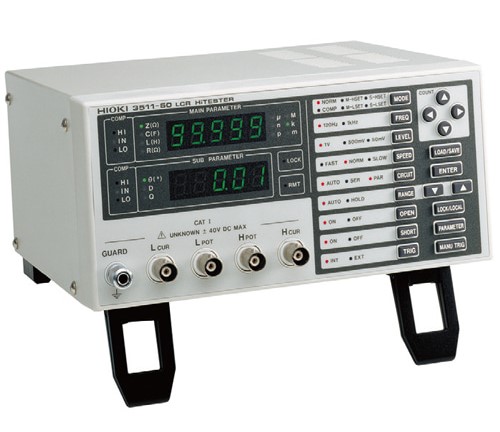

Key Features
• High speed measurement: 5 ms (1 kHz) or 13 ms (120 Hz) • Built-in high-speed comparator • Measurement frequency: 1 kHz/120 Hz selectable • From minute measurement with a maximum resolution of 0.01 pF to high-capacity measurement up to 1 F • Print measured values and comparator results with the Printer 9442 (option)
| Measurement parameters | |Z|, θ, R, C, L, D (tanδ), Q |
|---|---|
| Measurement range | |Z|, R: 10 mΩ to 200.00 MΩ θ: -90.00° to +90.00° C (at 120 Hz): 9.40 pF to 999.99 mF, C (at 1 kHz): 0.940 pF to 99.999 mF L (at 120 Hz): 14.00 µH to 200.00 kH, L (at 1 kHz): 1.600 µH to 20.000 kH D: 0.0001 to 1.9900, Q: 0.85 to 999.99 |
| Basic accuracy | |Z| : ±0.08 % rdg. θ: ±0.05° |
| Measurement frequency | 120 Hz or 1 kHz |
| Measurement signal level | 50 mV, 500 mV, 1 V rms |
| Output impedance | 50 Ω |
| Display | LED (5-digit display, full-scale count depends on range) |
| Measurement time | Fast: 13 msec, Normal: 90 msec, Slow: 400 msec. (at 120 Hz) Fast: 5 msec, Normal: 60 msec, Slow: 300 msec. (at 1 kHz) |
| DC bias | DC voltage/DC current can be superimposed on the measurement signal. (Requires optional unit and external constant voltage source/constant current source.) |
| Functions | Panel save and load function, External input/Output (EXT. I/O), GP-IB (option) or RS-232C interface |
| Power supply | Selectable 100, 120, 220 or 240V AC ±10%, 50/60Hz, 20VA max. |
| Dimensions and mass | 210 mm (8.27 in) W × 100 mm (3.94 in) H × 168 mm (6.61 in) D, 2.5 kg (88.2 oz) |
| Accessories | Instruction manual × 1, Power cord × 1, Spare fuse × 1 |
