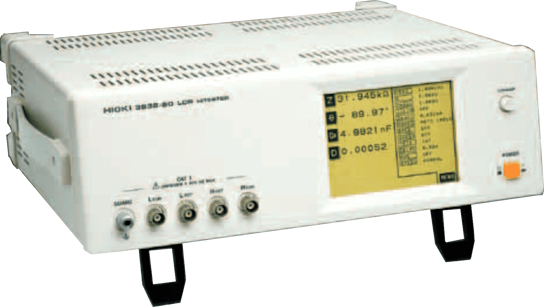

Better functionality and performance at a low cost

• High speed measurement of 5 ms LCR meter
• Higher frequency range (DC or 1 mHz to 100 kHz)
• Fourteen parameters measured (High resolution and high accuracy)
• DC resistance measurement

SPECIFICATIONS:

• Measurement parameters |Z|, |Y|, phase angle, Rp(DCR), Rs(ESR, DCR), G, X, B, Cp, Cs, Lp, Ls, D(dissipation factor), and Q
• Measurement method Source: constant current 10 킕 to 100 mA(AC/DC), or constant voltage 10 mV to 5 V (AC/DC)
• Sense: voltage, AC or DC
• Source frequency DC, or 1 mHz to 100 kHz
• Measurement ranges |Z|, R, X: 10.00 mΩ to 200.00 MΩ(depending on condition), phase angle: -180.00 to +180.00�, C: 0.3200 pF to 1.0000 F, L: 16.000 nH to 750.00 kH, D: 0.00001 to 9.99999, Q: 0.01 to 999.99, |Y|, G, B: 5.0000 nS to 99.999 S
• Basic accuracy |Z|: �0.08 % rdg. , phase angle: �0.05 �
• Measurement times typical values for displaying |Z|
• Fast: 20 msec. to Slow2: 828 msec.
• Display 99999 full digits, LCD with backlight display
• Comparator functions Setting: Upper and lower limit, percentage, or absolute value, Output: 3 levels (Hi, In, Lo), Open-collector, Isolated
• External printer 9442 (use with the 9443-02 or -03/9446/9593-01)
• Power supply 100 to 240 V AC (selectable type), 50/60Hz
• Dimensions, mass 313 mm(12.32 in)W � 125 mm(4.92 in)H � 290 mm(11.42 in)D, 4.5 kg (158.7 oz)
• Accessories Power cord(1), Fuse(1)
