Source Meter Function: Current/Voltage Source, DMM, Electronic Load, Power Supply, Waveform Generator
Source Voltage Range: ± 100mV to ± 40V
Output Power: 40.4W
Source Current Range: ± 100nA to ± 10A (±3Adc)
Resistance Measurement Range: -
Series: 2600
Product Features
Source Voltage Range: ± 100mV to ± 40V
Output Power: 40.4W
Source Current Range: ± 100nA to ± 10A (±3Adc)
Resistance Measurement Range: -
Series: 2600
Product Features

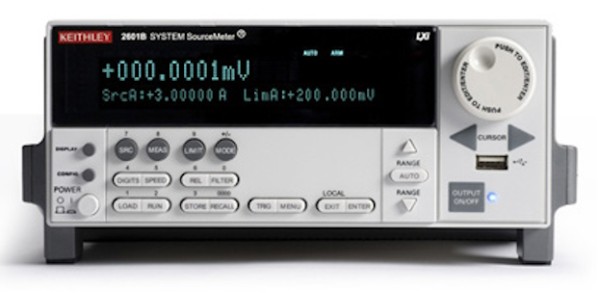

- Combines a power supply, true current source, 6-1/2 digit Digital Multimeter, arbitrary waveform generator, V or I pulse generator with measurement, electronic load, and trigger controller - all in one instrument. LXI Class C compliance supports high speed data transfer
- Family of products offers wide dynamic range: 1fA to 50A and 1?V to 200V .
- 20,000 rdg/s provides faster test times and ability to capture transient device behavior .
- Precision timing and channel synchronization (<500ns) .
- USB port for saving data and test scripts
