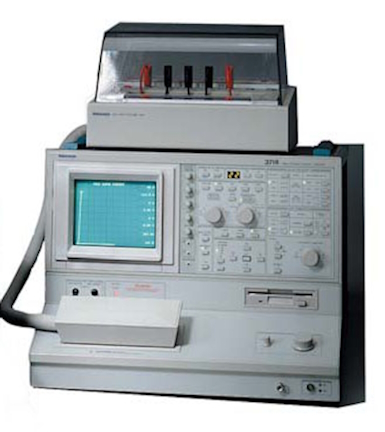

High power, DC semiconductor parameter measurements

Up to 3 kW peak power, 400 Amps, 3,000 volts

Includes test fixture with safety interlock, digital storage

    with on-screen readout and automatic test sequencing

Floppy disk storage

GPIB programmable

Collector Supply Modes

High Current 250 us pulses

High Voltage 300Vpk

Range: 0-3000 V

Max Peak Current: 400 A

Max Power: 300 W

Collector Current: 2uA/div to 50A/div
