제품명

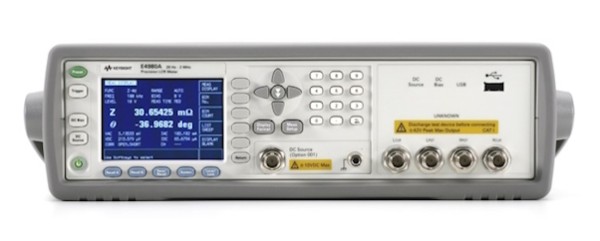

Precision LCR Meter
제조사
HP/Agilent/KEYSIGHT
모델
E4980A
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
- 20 Hz to 2 MHz, with 4-digit resolution in any range
- Standard configuration includes Option 200 - DC resistance measurement
- 0.05% basic accuracy with superior measurement repeatability at low and high impedance
- High-speed measurements up to 5.6 ms
- Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, Rdc, Idc, Vdc
- 20 Vrms test signal
- Built-in 40V DC Bias
- 40 A DC support with the Keysight 42841A Bias Current Source
- 201 points list sweep
- GPIB, USB, LAN (LXI-C)
- Three-year warranty
