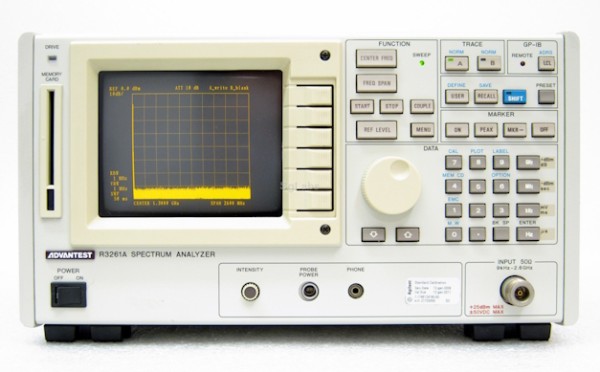

Advantest R3261A Features:

• Frequency range: 9kHz to 2.6 GHz
• Frequency resolution: 1 Hz
• Amplitude measuring range: -130dBm to +25dBm
• Average noise level: -120dBm
• CRT display

The Advantest R3261A Spectrum Analyzer also offers high performance functions such as a central frequency with a 1 Hz resolution, start/stop frequency setting and an internal frequency counter with a 1 Hz resolution.

Trace store modes and marker measurement modes simplify test measurements. A memory card reader is standard for storing setups, traces, and measurements. An internal demodulator provides sound to a front panel phone jack.

The Advantest R3261A Spectrum Analyzer has a full GPIB interface.
