◦Output Voltage: 0 to ±10 kV DC or peak AC
◦Output Current: 0 to ±40 mA DC or peak AC
◦Slew Rate: Greater than 750 V/µs
◦Large Signal Bandwidth: DC to greater than 23 kHz (-3dB)
◦Gain: 1000 V/V

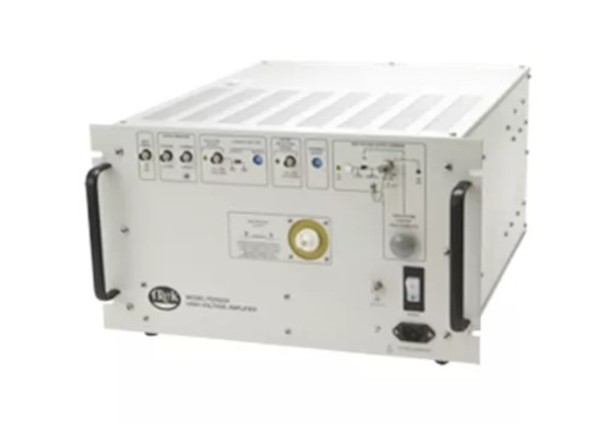

The Model 10/40A is a DC-stable high-voltage power amplifier used in industrial
and research applications. It features an all-solid-state design for high slew rate,
wide bandwidth and low-noise operation. The four-quadrant, active output stage
sinks or sources current into reactive or resistive loads throughout the output
voltage range. This type of output is essential to achieve an accurate output
response and high slew rate demanded by a variety of loads such as highly capacitive
or reactive loads. It is configured as a non-inverting amplifier.

Trek's Model 10/40A-HS offers 3x peak current, higher slew rate and bandwidth
compared to the model 10/40A.

Applications

◦Electrostatic deflection
◦Electrophoresis
◦Electrorheological fluids
◦Electro-optic modulation
◦Material poling
◦AC or DC biasing
◦Ion beam steering
◦Particle accelerators
◦Mass spectrometers
◦Material characterization
◦Ferroelectrics
◦Atmospheric plasma
◦Dielectric barrier discharge

Features and Benefits

◦Four-quadrant output for driving capacitive loads
◦Closed loop system for high accuracy
◦Short-circuit protected for equipment protection
◦All solid-state design for maintenance free operation
◦DC-stable for programmable supply applications
◦Low output noise for ultra-accurate outputs
◦NIST-traceable Certificate of Calibration provided with each unit
