제품명

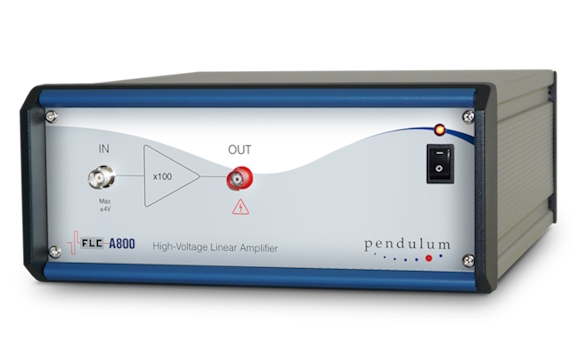

High Voltage Linear Amplifier
제조사
FLC Electronics
모델
A800
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
Bandwidth | - | DC to 250 kHz | |
Amplification | - | 100 times, fixed | |
Load | type | resistive || capacitive | |
full bandwidth | 300 pF | ||
Impedance | input | 1 Mohm || 30 pF | |
output | <0.1 ohm in the linear mode | ||
Voltage | input | nominal ±4 V | |
output | max ±400 V | ||
Current | output | 60 mA continuous | |
Slew Rate | output | 300 V/µs up to 300 pF load | |
Operating Ambient Temperature | 0°C to 30°C | |||
Storage Temperature | 0°C to 60°C | |||
Relative Humidity | up to 90% (operation), 30% to 50% (storage) | |||
Power Requirements | 100V or 110 V or 220 V, 50/60 Hz or 110/220V selector switch | |||
Fuse | 100/110 V: 3.15 A (slow), 220/230 V: 2 A (slow) | |||
Dimensions (H/W/L) | 102 x 257 x 262 (mm) | |||
Weight | 4 kg | |||
Country of Origin | Sweden | |||
