제품명

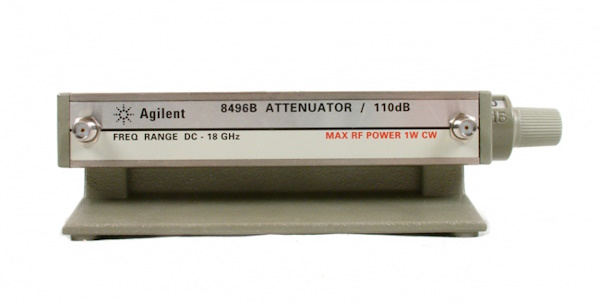

Step Attenuator
제조사
HP/Agilent/KEYSIGHT
모델
8496B
가격
문의요(재고유)
렌탈
문의요
상세내용
Frequency range: dc to 18 GHz
Attenuation range: 0 to 110 dB, 10 dB steps
Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
Repeatability life: 0.03 dB maximum, 5 million cycles per section
Maximum RF input power: 1 W (average), 100 W (peak)
Connector type: choice of Type-N female, SMA female, APC-7
