제품명

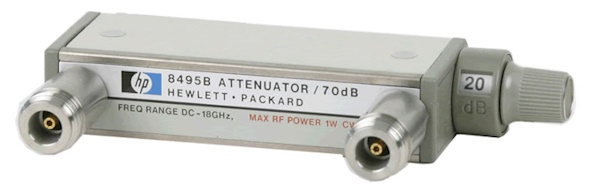

Step Attenuator
제조사
HP/Agilent/KEYSIGHT
모델
8495B
가격
문의요(재고유)
렌탈
문의요
상세내용
Frequency Range: dc to 18 GHz
Attenuation Range: 0 to 70 dB, 10 dB steps
Insertion Loss at 0 dB: 0.4 dB + 0.07 dB/GHz
Maximum SWR: 1.35 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
Repeatability Life: 0.03 dB maximum, 5 million cycles per section
Maximum RF Input Power: 1 W (average), 100 W (peak)
Connector Type: choice of Type-N female, SMA female, APC-7
