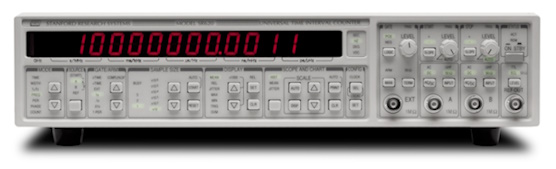

제품명
Frequency Counter
제조사
SRS
모델
SR620
가격
문의요
렌탈
문의요
상세내용
| Specifications | ||
| Timebase | ||
| Standard | Option 01 | |
| Frequency | 10.000 MHz | 10.000 MHz |
| Type | TCVCXO | Ovenized VCXO |
| Aging | 1 × 10-6/yr | 5 × 10-10/day |
| Allan variance (1 s) | 3 × 10-10 (typ.) | <5 × 10-12 |
| Stability 0 to 50 °C | 1 ppm | <2 × 10-9 |
| Settability | 0.01 ppm | 0.001 ppm |
| External timebase | User may supply 5 or 10 MHz timebase. 1 volt nominal. | |
| Time Interval, Width, Rise and Fall Times | ||
| Range | -1000 to +1000 s in +/-TIME mode; -1 ns to +1000 s in all other modes | |
| Trigger rate | 0 to 100 MHz | |
| Display LSD | 4 ps single sample, 1 ps with averaging | |
| Resolution | ||
| Standard timebase | (((25 ps typ. [50 ps max.])2 + (0.2 ppb × Interval)2) / N)1/2 rms | |
| Option 01 | (((25 ps typ. [50 ps max.])2 + (0.05 ppb × Interval)2) / N)1/2 rms, (N = sample size) | |
| Error | <±(500 ps typ. [1 ns max.] + Timebase Error ×Interval + Trigger Error) | |
| Relative error | <±(50 ps typ. [100 ps max.] + Timebase Error x Interval) | |
| Arming modes | +TIME (Stop is armed by Start) +TIME EXT (Ext arms Start) +TIME EXT HOFF (Leading EXT edge arms Start, trailing EXT edge arms Stop) ±TIME (Armed by Start/Stop pair) ±TIME CMPL (Armed by Stop/Start pair) ±TIME EXT (Armed by EXT input edge) EXT arming may be internally delayed or scanned with respect to the EXT input in variable steps. The step size may be set in a 1-2-5 sequence from 1 µs to 10 ms. The maximum delay is 50,000 steps. | |
| Display | 16-digit fixed point with 1 ps LSD | |
| Sample rate | N ×(800 µs + measured time interval) + calculation time (N=sample size) The calculation time occurs only after N measurements are completed and varies from zero (N=1, no graphics, binary) to 5 ms (N=1, no graphics) to 10 ms (display mean or standard deviation) to 60 ms (histogram). | |
| Frequency | ||
| Range | 0.001 Hz to 300 MHz via comparator inputs. 40 MHz to 1.3 GHz via internal UHF prescalers. RATIO A/B range: 10-9 to 103 | |
| Error | <±((100 ps typ. [350 ps max.])/Gate + Timebase Error ) × Frequency | |
| Gates | External, 1 period, 1 µs to 500 s in 1-2-5 sequence. Gates may be externally triggered with no delay. Gates may be delayed relative to an EXT trigger. The delay from trigger is set from 1 to 50,000 gate widths. | |
| Display | 16-digit fixed point with LSD = Freq × 4 ps/Gate. 1 µHz maximum resolution (1 nHz with ×1000 for frequencies <1 MHz) | |
| Period | ||
| Range | 0 to 1000 s RATIO A/B range: 10-9 to 103 | |
| Error | <±((100 ps typ [350 ps max])/Gate + Timebase Error) × Period | |
| Gates | Same as frequency | |
| Display | 16-digit fixed point with LSD = 1 ps (1 fs with ×1000 for periods <1 s) | |
| Phase | ||
| Definition | Phase = 360 × (Tb - Ta) / Period A | |
| Range | -180 to +180 degrees, 0 to 100 MHz | |
| Resolution | (25 ps × Freq. × 360 + 0.001)° | |
| Gate | 0.01 seconds (1 period min.) for period measurement and 1 sample for time interval measurement. Period may also be measured using externally triggered internal gates as in frequency mode. | |
| Error | <±(1 ns × Freq. × 360 + 0.001)° | |
| Counts | ||
| Range | 1012, RATIO A/B range: 10-9 to 103 | |
| Count Rate | 0 to 300 MHz | |
| Gates | Same as frequency | |
| Display | 12 digits | |
| Inputs | ||
| Bandwidth | 300 MHz, 1.2 ns rise time | |
| Threshold | -5.00 to +5.00 VDC (10 mV resolution) | |
| Accuracy | 15 mV + 0.5 % of setting | |
| Sensitivity | See graph | |
| Auto level | Threshold set between peak input excursions. (f >10 Hz, duty cycle >10-6) | |
| Slope | Rising or falling edge | |
| Impedance | (1 MΩ + 30 pf) or 50 Ω 50 Ω termination has SWR < 2.5:1 from 0 to 1.3 GHz | |
| Coupling | AC or DC (Ext is always DC coupled) | |
| Input noise | 350 µVrms (typ.) | |
| Prescaler | See graph | |
| Protection | 100 V, 50 Ω terminator is released if input exceeds ±5 Vp | |
| REF Output | ||
| Frequency | 1.00 kHz (Accuracy same as timebase) | |
| Rise/Fall | 2 ns | |
| Amplitude | TTL: 0 to 4 V (2 V into 50 Ω) ECL: -1.8 to -0.8 V into 50 Ω | |
| DVM Inputs | ||
| Full scale | ±1.999 VDC or ±19.99 VDC | |
| Type | Sample & hold with successive approximation converter | |
| Impedance | 1 MΩ | |
| Accuracy | 0.3 % of full scale | |
| Speed | Approximately 5 ms | |
| D/A Outputs | ||
| Full scale | ±10.00 VDC | |
| Resolution | 5 mV | |
| Impedance | <1 Ω | |
| Default | Voltage proportional to mean and deviation | |
| Accuracy | 0.3 % of full scale | |
| Graphics | ||
| Scope | Two rear-panel outputs to drive x-y analog oscilloscope | |
| Displays | Histograms and strip charts of mean and jitter | |
| X-axis | -5 V to +5 V for 10 division deflection | |
| Y-axis | -4 V to +4 V for 8 division deflection | |
| Resolution | 250 (H) × 200 (V) pixels | |
| Hardcopy | Centronics port for dot matrix printers. RS-232, IEEE-488.2 for HP-GL compatible plotters. | |
| Interfaces | ||
| RS-232C | 300 baud to 19.2 kbaud. All instrument functions may be controlled. | |
| GPIB | IEEE-488.2 interface. All instrument functions may be controlled. | |
| Speed | Approximately 150 ASCII formatted responses per second. 1400 binary responses per second. | |
