제품명

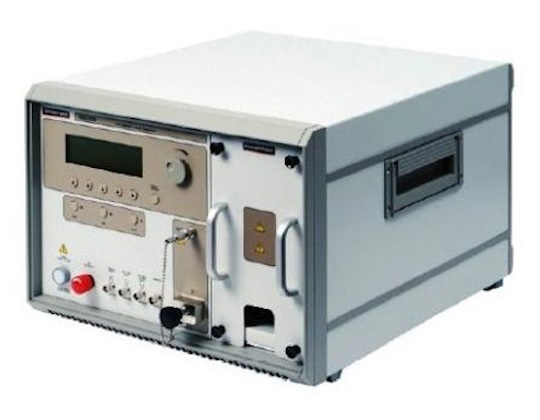

Fast Transient / Burst Generator
제조사
Schaffner
모델
NSG2025
가격
문의요(재고유)
렌탈
문의요
첨부파일
상세내용
| Unit Power | 100 - 115 V and 220 - 240 V, 50 - 60 Hz |
| Pulse Amplitude | 200 V to 4.5 or 8 kV (open circuit) adjustable in steps of 20 V |
| Polarity | positive or negative, selectable |
| Rise Time | 5ns ±20% (50 W, 10 - 90%) |
| Pulse Width | 50ns ±30% (50 W and 1 W), 100ns ±50% open circuit |
| Pulses Per Packet | 1 to 150 pulses |
| Burst Duration | Pulses per packet / burst frequency, (15ms burst duration as per IEC 1000-4-4 up to 10 kHz) |
| Burst Repetition | 100ms to 10s ±2ms or 2% |
| Impedance | 50 W ±20% |
| Coupling Network | 1-phase or 3-phase |
| EUT Supply | Switched by remote control, 24 to 500 Vac, 50 - 60 Hz |
| Coupling Modes | Line to reference ground (IEC 1000-4-4), selected lines together to reference ground, all lines to reference ground (common mode) |
| Phase Angle | Asynchronous/synchronous 0 - 360° ±2° |
| Coupling Capacitance | 33 nF |
| Decouple Attenuation | >20 dB |
| Cross Talk Attenuation | >30 dB |
