Products 20 페이지

Products

제품소개

게시물 검색

번호

이미지

제품명/제조사/모델명

간략설명

  • 579
    579

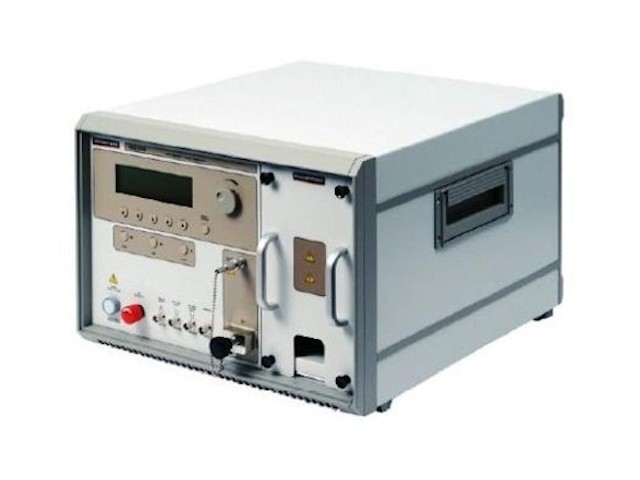

    Fast Transient / Burst Generat…

    제조사 : Schaffner

    모델명 : NSG2025

    High end burst generator, IEC61000-4-4, Pulse amplitudes up to 4.5KV, Burst frequencies up to 1MHz, Integrated single phase coupling network, 급과도발생기
  • 578
    578
    HV Pulse Generator

    제조사 : HV Pulse

    모델명 : C6K-20P

    ~5KHz, 6KVrms, 15KVpp, TTL입력(후면)
  • 577
    577
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1966

    2ch, 0.01uHz-50MHz res0.01uHz, 20Vp-p, Wave:Sin,Triangle,Squre,Pulse,Ramp,(2MHz),Noise,DC,ARB Cont/Burst/Gate/Trig, Duty:0.01-99.99% WaveMemory:8KW
  • 576
    576
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1956

    ch1; 0.01uHz-15MHz, res0.01uHz, 20Vp-p, ch2 HFmode ; 100kHz~100MHz, 4Vp-p, Duty:0.01-99.99% WaveMemory:8KW, Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB Cont/Burst/Gate/Trig
  • 575
    575
    Pulse/Function Generator

    제조사 : HP/Agilent

    모델명 : 8116A

    Frequency: 1 mHz to 50 MHz, Sine, triangle, square, haverfunctions and DC, 32Vpp for all waveforms, Variable (10 ns min) pulse width, 6 ns transitions
  • 574
    574
    Synthesized Sweeper

    제조사 : HP/Agilent/KEYSIGHT

    모델명 : 83621B

    Frequency Range : 45 MHz to 20 GHz, Frequency Resolution : 1 Hz, Output Range : -20 dBm - +13 dBm
  • 573
    573
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1944A, WF1944B

    2ch, 0.01uHz-15MHz res0.01uHz, 20Vp-p, Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB Cont/Burst/Gate/Trig, Duty:0.01-99.99% WaveMemory:8KW
  • 572
    572
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1946A

    2ch, 0.01uHz-15MHz res0.01uHz, 20Vp-p, Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB Cont/Burst/Gate/Trig, Duty:0.01-99.99% WaveMemory:8KW
  • 571
    571
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1941

    1ch, 0.01uHz-15MHz res0.01uHz, 20Vp-p, Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB Cont/Burst/Gate/Trig, Duty:0.01-99.99% WaveMemory:8KW
  • 570
    570
    Multifunction Generator

    제조사 : NF

    모델명 : WF1974

    2 ch, 0.01µHz ~ 30MHz, Frequency resolution: 0.01µHz, Output Voltage; 20Vpp(open), 10Vpp(50ohm), Resolution of arbitrary waveform data amplitude: 16 bits
  • 569
    569
    Arbitrary Waveform Generator

    제조사 : BIOMATION

    모델명 : 2202A

    0.1 S/s to 20 MS/s Adjustable Sample Rate, 12 Bit (0.025%) Resolution, 4 Fully-Programmable Sync Outputs, 128 k Waveform Memory
  • 568
    568
    Arbitrary Waveform Generator

    제조사 : TEKTRONIX

    모델명 : AWG2005

    4 ch, 20 MS/s(50 ns)/10 MHz, Up to Four Channels of 64 k, 12-Bit (1/4096) Vertical Resolution, RS-232, GPIB
  • 567
    567
    4ch Waveform Generator

    제조사 : HIOKI

    모델명 : 7075

    Four Independent Channel Models, 16 bits (64000 counts) Waveform Generation, 10 MHz Sine & Square Wave with 10 mHz Res. GP-IB and RS-232C Interfaces
  • 566
    566
    Data Pattern Generator

    제조사 : TEKTRONIX

    모델명 : DG2020

    Data Rate to 200 Mb/s, Data Pattern Depth 64 K/Channel, Transition Times 2 ns at 5 Vp-p, GPIB/RS-232-C Interface, P3410
  • 565
    565
    Pulse Generator

    제조사 : HP/Agilent

    모델명 : 8131A

    2ch, 500 MHz, <200 ps fixed transitions, 10 ps timing resolution, Differential outputs: max. 5 Vpp into 50 Ohm, Period: 2.00 ns to 99.9 ms, GPIB
  • 564
    564
    Data Pattern Generator

    제조사 : TEKTRONIX

    모델명 : DG2040

    Data Rate to 1.1 Gb/s Tests, Data Pattern Depth to 256 K/channel, 2 Output Channels Increases Flexibility, Fast Transition Times to 150 ps
  • 563
    563
    Function Synthesizer Generator

    제조사 : NF

    모델명 : WF1945A

    1ch, 0.01uHz-15MHz res0.01uHz, 20Vp-p, Wave:Sin,Triangle,Squre,Pulse,Ramp,Noise,DC,ARB Cont/Burst/Gate/Trig, Duty:0.01-99.99% WaveMemory:8KW
  • 562
    562
    Arbitrary Waveform Generator

    제조사 : BIOMATION/TEGAM

    모델명 : 2414A

    0.1 S/s to 20 MS/s Adjustable Sample Rate, 12 Bit (0.025%) Resolution, 4 Fully-Programmable Sync Outputs, 128 k Waveform Memory
  • 561
    561
    Pulse Generator

    제조사 : HP/Agilent/KEYSIGHT

    모델명 : 8133A

    2ch, pulse-/data channel (option 002), 33.0 MHz~3 GHz, pulse width 150ps~10ns, Transitions typi. <60 ps, Jitter typi. <1 ps, 1 ps resolution, 350 fs, SMA 3.5mm, GPIB
  • 560
    560
    Pulse Generator

    제조사 : HP/Agilent

    모델명 : 8012A

    1 Ch, Type 50 MHz, Pulse Width 10 ns - 1 s, Output Voltage 10 V, Delay Min/Max 1 s
