제품명

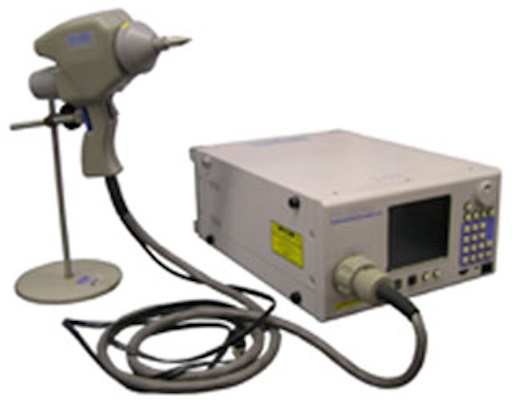

Electrostatic Discharge Simulator

제조사

NOISEKEN

모델

ESS-200AX

가격

문의요

렌탈

문의요

첨부파일

상세내용


SPECIFICATIONS

ItemESS-2000AX Specifications
Output polarityPositive or negative
Output voltage0.20kV~30.0kV ±5%  (30.5kV max)
0.20kV~10.0kV: 0.01V step, 10.0kV~30.0kV:0.1V step
Discharge intervalNormal mode: 0.05s~600.0s ±10%
Extra mode : 1.00s~600.0s ±10%
0.05s~9.99s: 0.01s step, 10s~600.0s: 0.1s step
No. of times of discharge1~60,000 times preset on the counter or continuous
Discharge modeAir/contact discharge
Radiation levelNormal/Extra mode
Trigger modeGun trigger/main unit trigger/ external trigger
Operation
mode		IEC standardContact discharge: 2.0kV, 4.0kV, 6.0kV, 8.0kV
                                (4 voltages preset)
Air discharge: 2.0kV, 4.0kV, 8.0kV, 15.0kV (4 voltages preset)
ManualContact/Air discharge: 0.20kV～30.0kV
Sweep (automatic voltage ramping) available
Up to 99 units (test settings) storable
SequenceSeamless run of the selected test sequence (made of any combination of 99 units in Manual mode)
No. of units per one test sequence: up to 30 units
No. of test sequences: up to 20
Warning lampLights up while the HV circuitry is on
Blinks while discharges are in progress
Discharge gunTC-815R
Charging resistance10M ohm(53 M ohm for combination with TC-815R discharge gun)
AUX connectorD-SUB15 pin, female connector
Warning lamp (optional) connection
Automatic ESD Eliminator (optional) connection
External interlock input
External trigger input
Optical communication connectorOptic RS-232C for PC communication
Power supply100~240V AC   50/60 Hz  ±10%
Power consumption75VA
Operating temperature and humidity+15~+35ºC,  25~75% (no condensation)
Character displayEnglish or Japanese
Dimensions and weight260 (W) X 230 (H) X 285 (D) mm (projection excluded)
Approx. 5.3 kg
