Highlights

Standalone tester for 10/700us pulse as per IEC 61000-4-5
Complies to ITU-T
Complies to FCC part 68 (Surge B pulses)
Built-in CDNs for 2-wire and 4-wire applications
Manual operation
Standard Test routines
RS232 and GPIB interface

Application

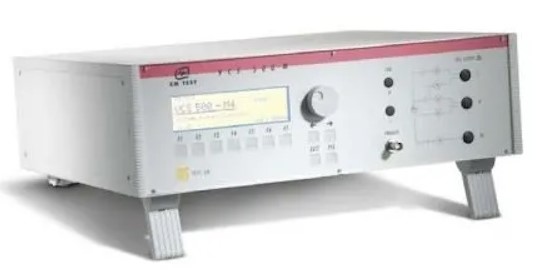

TSS 500M4 - Compact Telecom Surge generator with 10/700us test pulse
Telecommunication networks are exposed to lightning events.
Therefore telecommunications equipment being connected to the
outside world need to have appropriate protection to show
an acceptable immunity to surge transients in order not to
fail in case of lightning events. Telecom Surge simulators
of the TSS 500 series are used to proof the immunity of
telecommunications equipment.
The TSS 500M4 is used to perform tests as per IEC 61000-4-5
and related standards and complies with the requirements of
ITU-T and FCC 97-270 (part 68) for Surge B pulse.

Standards

EN 60950-1
EN 61000-4-5
FCC 97-270 (part 68)
IEC 60065
IEC 60950-1
IEC 61000-4-5
ITU-T K.17
ITU-T K.20
ITU-T K.28
ITU-T K.45
