제품명

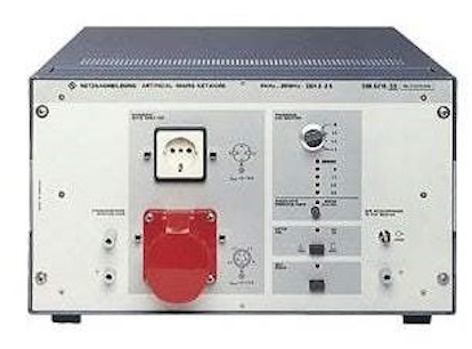

LISN
제조사
ROHDE & SCHWARZ
모델
ESH2-Z5
가격
문의요
렌탈
문의요
상세내용
SPECIFICATION
- Frequency range 9 kHz to 30 MHz;
- V-network in line with CISPR, EN, VDE, ANSI;
- Impedance (50 µH + 5Ω)/50Ω (magnitude and phase) in line with CISPR16-1-2:2006;
- Continuous current up to 4 x 25 A;
- Short time current (max. 2 min.) up to 4 x 50 A;
- Artificial hand and PE simulation network;
- Air-core design;
- Remote control via TTL levels (compatible with the R&S®EMI test receivers);
- Calibrated to CISPR 16-1-2 and ANSI C63.4.
- Max. AC supply voltage 250 V rm
- Max. AC supply frequency 63 Hz
- Dimensions (H x B x T) 492 mm x 294 mm x 603 mm
- Weight 26 kg
