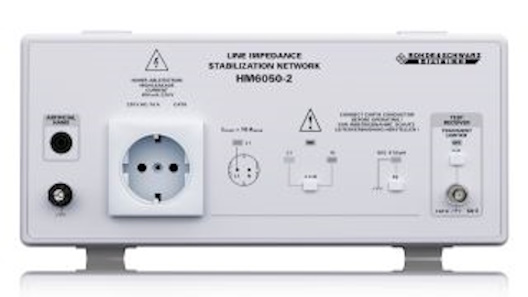

Single-phase V-network to measure line-conducted interferences from 10 kHz to 30 MHz (based on CISPR 16¹)

115 V and 230 V versions available

Selectable transient limiter

Artificial hand connector

RS-232 interface for remote control


¹ Amplitude/frequency characteristics

Frequency Range:

9 kHz…30 MHz

Impedance Characteristics:

Z = 50 Ω II (50 µH + 5 Ω), Error <20 % under terms of VDE 876T1

Max. Current:

16 A

Line Voltage/Frequency:

230 V/50…60 Hz, CAT II

Artificial Hand:

220 pF + 511 Ω

PE (selectable):

50 µH II 50 Ω

Transient Limiter

Frequency Range:

150 kHz…30 MHz

Transmission Loss:

10 dB (+1.5/-0.5 dB)

Connectors

Measurement Output:

50 Ω BNC

Power Supply Socket for DUT:

Standard German (UK, US) wall outlets

Artificial Hand:

4 mm banana socket

Line Cord:

fixed

Miscellaneous

Operating Temperature:

10…40 °C

Power Supply:

HM6050-2D (DE Version) 230 V ±10 %, 50…60 Hz
HM6050-2K (UK Version) 230 V ±10 %, 50…60 Hz
HM6050-2S (US Version) 115 V ±10%, 50…60 Hz

Safety Class:

Safety class I (IEC1010-1/VDE 0411)

Dimensions and Weight:

285 x 125 x 380 mm (W x H x D), approx. 6 kg
