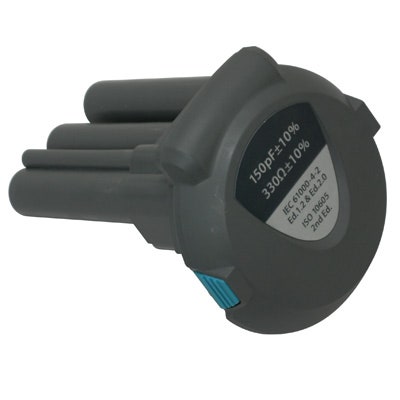

CR units for ESD Gun GT-30R series
●Available discharge gun : GT-30R series
Please contact us when other CR constants are required than the items listed below. The unit size varies depending on the capacitor constant.
| Model | CR constant |
| 06-00073B | 150pF - 330 ohm |
| 06-00074B | 150pF - 2k ohm |
| 06-00075B | 330pF - 330 ohm |
| 06-00076B | 330pF - 2k ohm |
| 06-00077B | 500pF - 0 ohm |
| 06-00078B | 150pF - 500 ohm |
| 06-00079B | 100pF - 1.5k ohm |
| 06-00080B | 200pF - 0 ohm |
| 06-00081B | 150pF - 150 ohm |
| 06-00082B | 500pF - 500 ohm |
| 06-00083B | 500pF - 5K ohm |
| 06-00084B | 250pF - 100 ohm |
| 06-00085B | 200pF - 100 ohm |
| 06-00086B | 250pF - 0 ohm |
