제품명

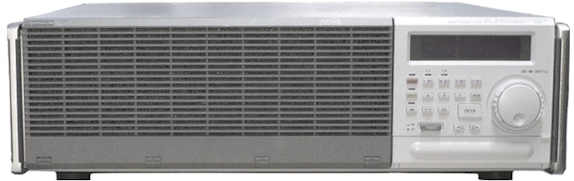

DC Electronic Load
제조사
KIKUSUI
모델
PLZ1003W
가격
문의요(재고유)
렌탈
문의
첨부파일
상세내용
Form Factor: Benchtop
Type: DC
Maximum Power: 1000 Watts
Voltage 1.5 V - 120V
Current 0 - 200A
Current Ripple and Noise: 20 mArms
Constant Current Mode: Yes
Setting Range:
- H Range: 0 to 200A
- L Range: 0 to 20A
Constant Voltage Mode: Yes
Setting Range: - 1.5V to 120V
Constant Power Mode: Yes
Setting Range: - 100W to 1000W
Constant Resistance Mode: Yes
Setting Range:
- H Range: 0.015Ω to 1Ω
- L Range: 0.15Ω to 10Ω
Transient Generator: No
User Interface: Proprietary
Ports to Peripheral Devices: GPIB, RS232C
| Rating | Operating Voltage: | 1.5 V to 120 V |
| Current: | 0 to 200 A | |
| Power: | 0 to 1200 W | |
| Constant Current Mode Setting Range | H Range: | 0 to 200A |
| L Range: | 0 to 20A | |
| Constant Voltage Mode Setting Range | 1.5 V to 120 V | |
| Constant Resistance Mode Setting Range | H Range: | 0.015 ohms to 1 ohms |
| L Range: | 0.15 ohms to 10 ohms | |
| Constant Power Mode Setting Range | 100 W to 1000 W | |
