제품명

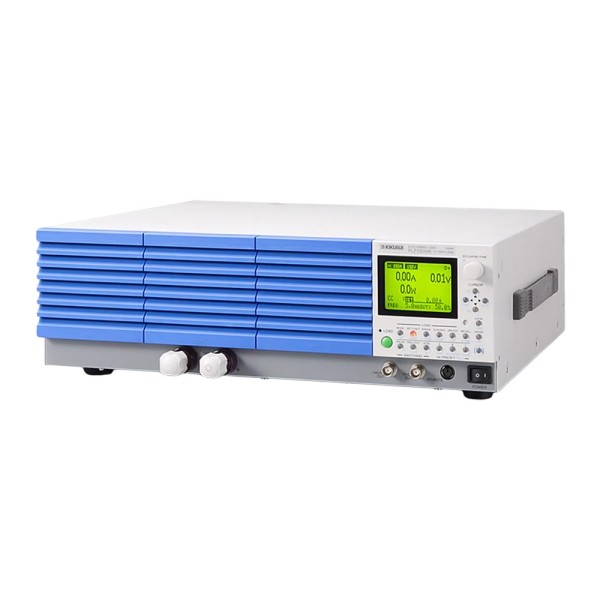

DC Electronic Load

제조사

KIKUSUI

모델

PLZ1004W

가격

문의요(재고유)

렌탈

문의요

첨부파일

상세내용


∵ Capable to work with constant-current, constant-resistance,
   constant-voltage
   constant-power and combination of constant-current + constant-
   voltage,
   constant-resistance + constant-voltage mode
∵ For transient switching operations, it is possible to set a slew rate
   (A/us)
∵ Various circuit protection functions [overvoltage(OVP), overcurrent
   (OCP),
   overpower(OVP), overheat(OHP), undervoltage(UVP), Reverse
   connection(REV)


  Specifications

PLZ164W
PLZ334W
PLZ1004W
Rating
  Operatingvoltage
V
1.5~150
current
A
33
66
200
power
W
165
330
1000
Constant Current
mode
Operating range
Range H
0~34.65A
0~69.3A
0~210A
Range M
0~3.465A
0~6.93A
0~21A
Range L
0~346.5mA
0~693mA
0~2.1A
Ripple
Range L
3
5
20
Constant Voltage
mode
Operating range
Range H
1.5~157.5V
Range L
1.5~15.75V
Resolution
Range H
10mV
Range L
1mV
Constant
resistance
mode
Operating range
Range H
22~400us
44~800us
133.3~
2.424ms
Range M
2.2~40us
4.4~80us
13.33~
242.4us
Range L
0.22~4us
0.44~8us
1.333~
24.24us
Constant Power
mode

Range H
0~173.25W
0~17.325W
0~1.7325W
Range M
0~346.5W
0~34.65W
0~3.465W
Range L
0~1050W
0~105W
0~10.5W
