제품명

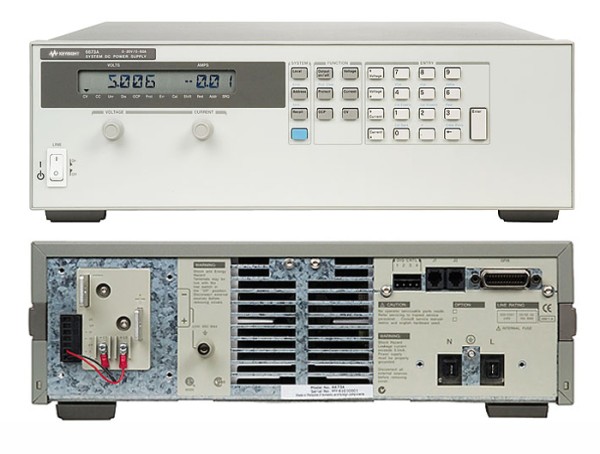

DC Power Supply
제조사
HP/Agilent/KEYSIGHT
모델
6675A
가격
문의요
렌탈
문의요
첨부파일
상세내용
- 2,000 Watts
- 120V, 18A
- Low-noise output
- Linear output regulation
- Overvoltage & overcurrent protection
- Fast up & down programming
- Auto-parallel and series operation
- GPIB (SCPI)
- Measured V & I readback over GPIB
- Serial link connects 16 units to one GPIB address
- Fan speed control for low acoustic noise
- UL listed, CSA certified
Output Ratings
- Output voltage: 0 to 120 V
- Output current (40°C): 0 to 18 A
Programming Accuracy at 25°C
- Voltage 0.04% + 120 mV
- Current 0.1% + 12 mA
Ripple & Noise from 20 Hz to 20 M
- Voltage rms: 1.9 µV
- Peak-to-Peak: 16 mV
- Current rms: 12 mA
Readback Accuracy at 25°C &pl
- Voltage 0.05% + 180 mV
- +Current 0.1% + 18 mA
