제품명

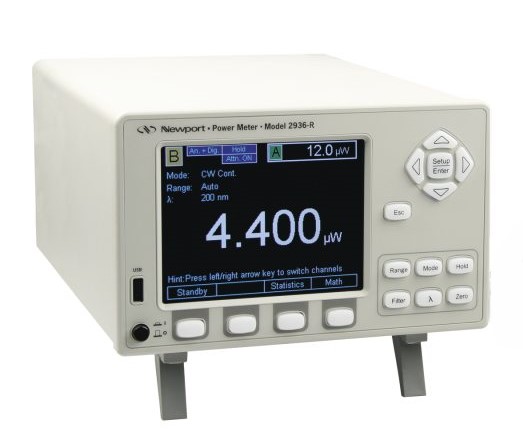

Optical Power Meter
제조사
NEWPORT
모델
2936-R
가격
문의요
렌탈
문의요
첨부파일
상세내용
- Number of Channels2
- BandwidthUp to 400 kHz, depending on Range
- Measurement RatePhotodiode: Up to 10 kHz for cw, 20 kHz for peak to peak
Thermopiles: 1 kHz - Compatible Detectors818-xx/DB, 918D (photodiode), 818P, 919P (thermopile), 818E (pyroelectric), 819C, 819D
- Detector InputUp to 25 mA for photodiode, 130 V for thermopile and pyroelectric detectors
- Sampling Rate250 kHz (10 kHz accessible by user)
- Resolution0.0004% of Range Full Scale
- Accuracy±0.2 % for CW, ±1 % for Peak to Peak, Pulse to Pulse, and Integration Mode
- Frequency Measurement Range1 Hz - 250 kHz
- Gain Ranges8 ranges, 7 decades
- Analog Output0-1 V, 0-2 V, 0-5 V or 0-10 V (user selectable output impedance)
- Data Storage250,000 Point Internal Storage
- Computer InterfacesUSB and RS-232
- Display Mode20 mm Numeric, Bar Chart, Min/Max Bar, Statistics, Analog Needle
- Display Type5.7 in. Graphical TFT LCD, ¼ VGA
- Display Refresh Rate20 Hz
- Photodiode MeasurementAverage Power, Peak-to-Peak Power, Frequency
- Thermopile MeasurementAverage Power, Single Shot Energy
- Power Requirements90-240 VAC
- Dimensions308 x 216 x 133 mm
- Weight5.6 kg
- Operating Temperature5 to 40°C, <70% RH
- Storage Temperature-20°C to 60°C, <90% RH
- CECompliant
- RoHSCompliant
